Categoriesmono solar panel
AlbumView larger image
Brandsufusolar,saikangguangdian,shanggui
ModelSFM3000w
Max. Power300W
CertificateTUV/CE/ISO
Warranty25 Years Output Power Guarantee
Frame MaterialAnodized Aluminum Alloy
Front Cover(Material/Thickness)Tempered & Low Iron Glass/3.2mm
EncapsulateEthylene Vinyl Acetate
rated voltage30
rated current8.33
ConnectorMC4 Plugs
Solar cellPoly 125*125 Cell
FOB portTianjin
Terms of PaymentT/T
Update Time2018-12-15
Detail Information

Best Price 300 W Monocrystal Panel Solar manufactures from China

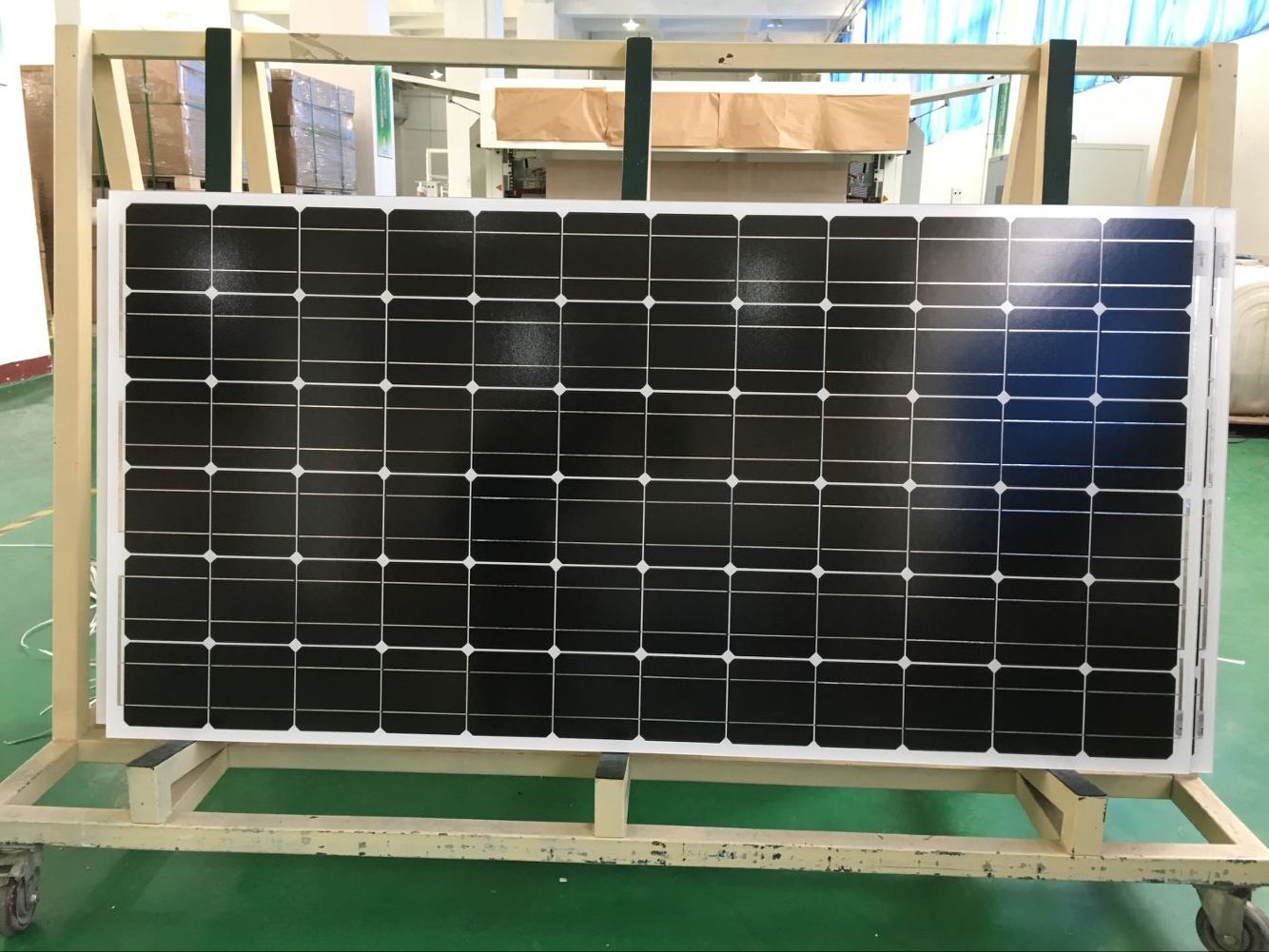

Solar Module Structure

The solar module combines the monocrystalline(polycrystalline) solar cells in series, with a high current density and smaller size.

The solar module is aluminum alloy frame, the former board and backplane from laminated packaging; components on the metal frame has mounting holes, easy to use, and with the solid structure.

3mm thickness tempered glass front panel, it offered the high-performance protection for resisting the impact of environmental. And it has a high transmission rate of direct light and scattered light sealing plate can effectively prevent moisture intrusion and penetration of seawater corrosion.




ELECTRICAL CHARACTERISTICS(STC*)
Model No.(SFM)280W290W300W310W320W330W
Maximum Power at STC(Pmax)280W290W300W310W320W330W
Maximum Power Voltage(Vmp)36.00V36.10V36.20V36.40V36.70V37.10V
Maximum Power Current(Imp)7.78A8.03A8.29A8.52A8.72A8.89A
Open Circult Voltage(Voc)43.20V43.32V43.44V43.68V44.04V44.52V
Short Circuit Current(Isc)8.56A8.84A9.12A9.37A9.59A9.77A
Module Effciency(%)14.4715.0015.5116.0316.5417.06
Maximum System Voltage(V)1000V DC(IEC)
Maximum Series Fuse Rating(A)15A
Power Tolerance(%)0+3%
NOCT45±2
Pmax Temperature Coefficient-0.42%/
Voc Temperature Coefficient-0.32%/
Isc Temperature Coefficient0.06%/
Storage Temperature From -40to+60
Operating Temperature From -40to+85
