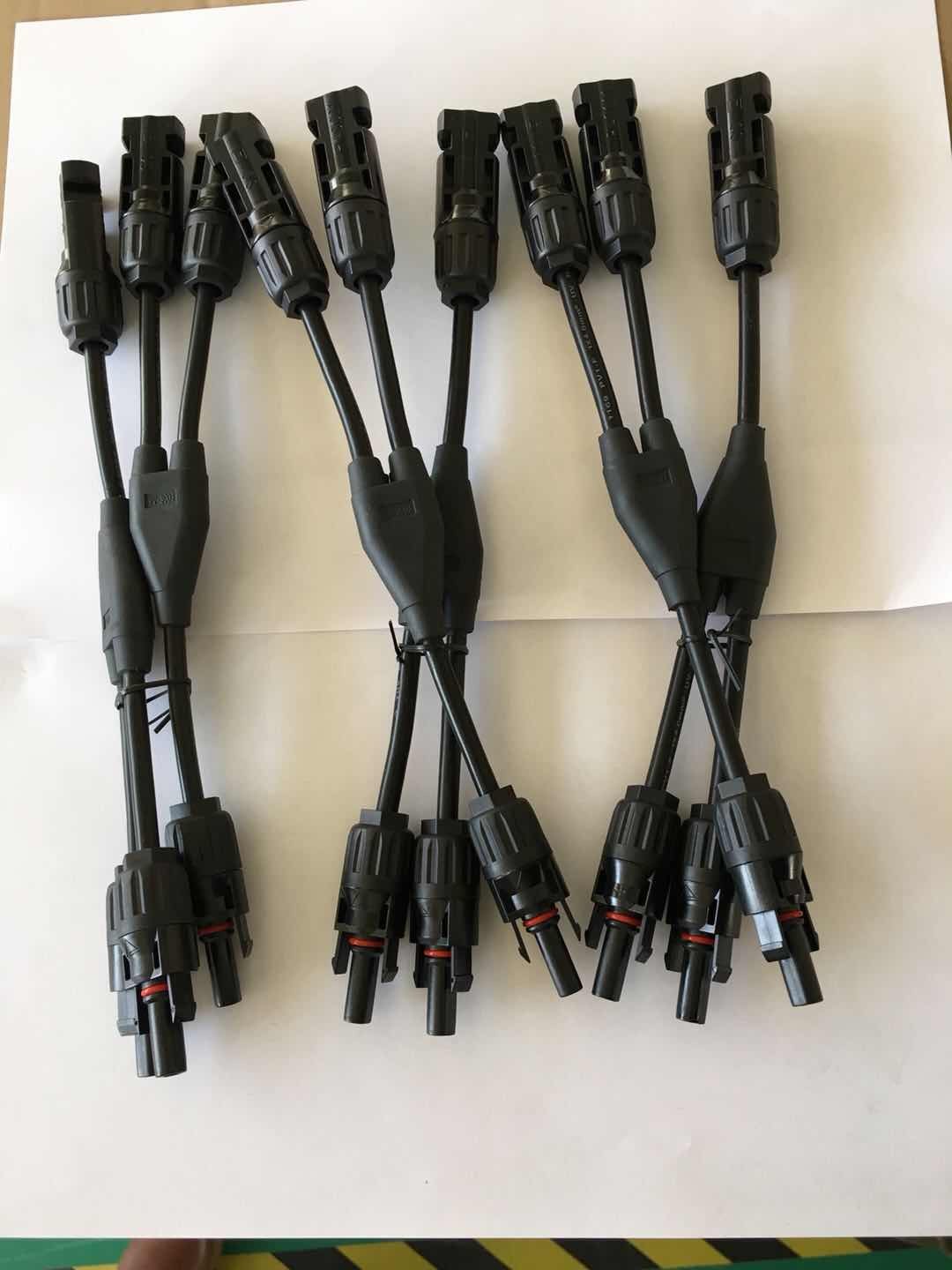

MC4 Connectors Y Branch Parallel Adapter Cable Wire Plug Tool Kit for Solar Panel

MC4 Connectors Y Branch Parallel Adapter Cable Wire Plug Tool Kit for Solar Panel

MC4 Connectors Y Branch Parallel Adapter Cable Wire Plug Tool Kit for Solar Panel
MC4 Connectors Y Branch Parallel Adapter Cable Wire Plug Tool Kit for Solar PanelMC4 Connectors Y Branch Parallel Adapter Cable Wire Plug Tool Kit for Solar PanelMC4 Connectors Y Branch Parallel Adapter Cable Wire Plug Tool Kit for Solar PanelMC4 Connectors Y Branch Parallel Adapter Cable Wire Plug Tool Kit for Solar PanelMC4 Connectors Y Branch Parallel Adapter Cable Wire Plug Tool Kit for Solar Panel
CategoriesSolar connector
AlbumView larger image
Brandsufusolar,saikangguangdian,shanggui
ModelPV-SC03
Rated Voltage1000VDC
Test Voltage6000v(50Hz 1min)
Rated Current30A
Protection degreeIP67
CertificateTUV
Connection Cable1*4mm2
Insulation materialPA/PRO
Temperature range-40℃~+110℃
Protection classII
FOB portTIANJIN
Terms of PaymentL/C, T/T
Download DOC
Update Time2018-12-15
Detail Information

MC4 Connectors Y Branch Parallel Adapter Cable Wire Plug Tool Kit for Solar Panel

Whole image:




Drawing picture



Basic datas


High quality solar panel junction box ip65 with 4mmsolar pv cable1000VDC
Protection classClassII
Protection DegreeIP65
Flame ClassUL94-V0
Temperature Range-40-+85
Connection Cable1*4mm2
Waterproofing structureO-ring Seal
Width Of Copper RibbonUp to 6mm
Connection MethodSoldering
Insulation MaterialPPO(or ABS/PC)
Contact Material PV
Bonding modeSiliica gel


Advantages of MC4 Solar Cable Connector :

•Simple,quick,safe and effective filed assembly
•Develop independently,innovative design,have independent intellectual property rights,adaptive to MC4 connector directly
•High mechanical endurance
•High current and voltage carrying :30A,1000DC
•Low transition resistance
•Innovative sealed,waterproof,dust resistance design:IP65
•Excellent plastic material ,UL 94-V0,wide temperature range:-40°c to 85°c,weather and UV resistant for long-time outdoor application
•Approved by TUV

Terms:

 Payment Term: T/T 100% deposit advance based on sample or less than container  quantity order.
                              T/T 30% deposit advance, balance after copy of BL( based on CIF terms)
 Delivery time: 5-7 working days after deposit .
 Certificate: ISO9001/ISO14001/IEC/TUV
