black MC4 Connectors four or three Branch customized Cable Wire
Categories | Solar connector |
---|---|
Album | View larger image |
Brand | sufusolar,saikangguangdian,shanggui |
Model | PV-SC04 |
Rated Voltage | 1000VDC |
Test Voltage | 6000v(50Hz 1min) |
Rated Current | 30A |
Protection degree | IP67 |
FOB port | TIANJIN |
Terms of Payment | L/C, T/T |
Download DOC | ![]() |
Update Time | 2019-02-23 |
Detail Information
MC4 Connectors Y Branch Parallel Adapter Cable Wire Plug Tool Kit for Solar Panel

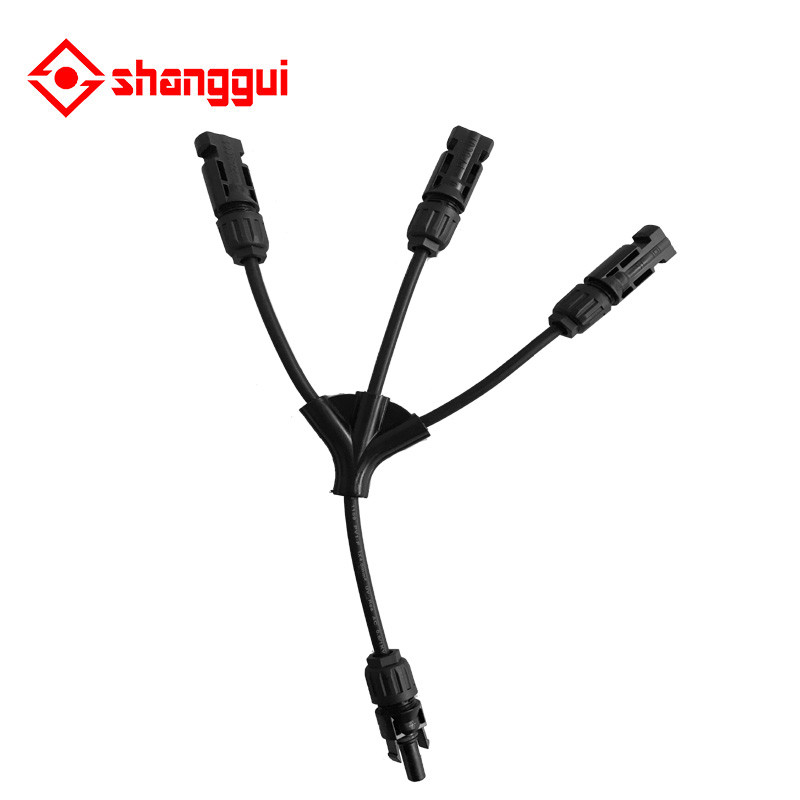

Whole image:


Drawing picture

Basic datas
High quality solar panel junction box ip65 with 4mmsolar pv cable | 1000VDC |
Protection class | ClassII |
Protection Degree | IP65 |
Flame Class | UL94-V0 |
Temperature Range | -40℃-+85℃ |
Connection Cable | 1*4mm2 |
Waterproofing structure | O-ring Seal |
Width Of Copper Ribbon | Up to 6mm |
Connection Method | Soldering |
Insulation Material | PPO(or ABS/PC) |
Contact Material | PV |
Bonding mode | Siliica gel |
Advantages of four branch MC4 Solar Cable Connector :
•Simple,quick,safe and effective filed assembly
•Develop independently,innovative design,have independent intellectual property rights,adaptive to MC4 connector directly
•High mechanical endurance
•High current and voltage carrying :30A,1000DC
•Low transition resistance
•Innovative sealed,waterproof,dust resistance design:IP65
•Excellent plastic material ,UL 94-V0,wide temperature range:-40°c to 85°c,weather and UV resistant for long-time outdoor application
•Approved by TUV
•Simple,quick,safe and effective filed assembly
•Develop independently,innovative design,have independent intellectual property rights,adaptive to MC4 connector directly
•High mechanical endurance
•High current and voltage carrying :30A,1000DC
•Low transition resistance
•Innovative sealed,waterproof,dust resistance design:IP65
•Excellent plastic material ,UL 94-V0,wide temperature range:-40°c to 85°c,weather and UV resistant for long-time outdoor application
•Approved by TUV
Terms:
Payment Term: T/T 100% deposit advance based on sample or less than container quantity order.
T/T 30% deposit advance, balance after copy of BL( based on CIF terms)
T/T 30% deposit advance, balance after copy of BL( based on CIF terms)
Delivery time: 5-7 working days after deposit .
Certificate: ISO9001/ISO14001/IEC/TUV
