200w 300w poly solar panel for solar system

200w 300w poly solar panel for solar system

200w 300w poly solar panel for solar system
200w 300w poly solar panel for solar system200w 300w poly solar panel for solar system200w 300w poly solar panel for solar system200w 300w poly solar panel for solar system200w 300w poly solar panel for solar system
CategoriesPoly Solar Panel
AlbumView larger image
Maximum power voltage35.80V
Maximum power current8.38A
Open circult voltage42.96V
Maximum system voltage1000V DC(IEC)
Short circuit current9.22A
Power Tolerance(%)0~+3
Pmax Temperature Coefficient-0.42%/℃
FOB porttianjin or customized
Terms of PaymentT/T
Download DOC
Update Time2019-02-23
Detail Information

200w 300w poly solar panel for solar system

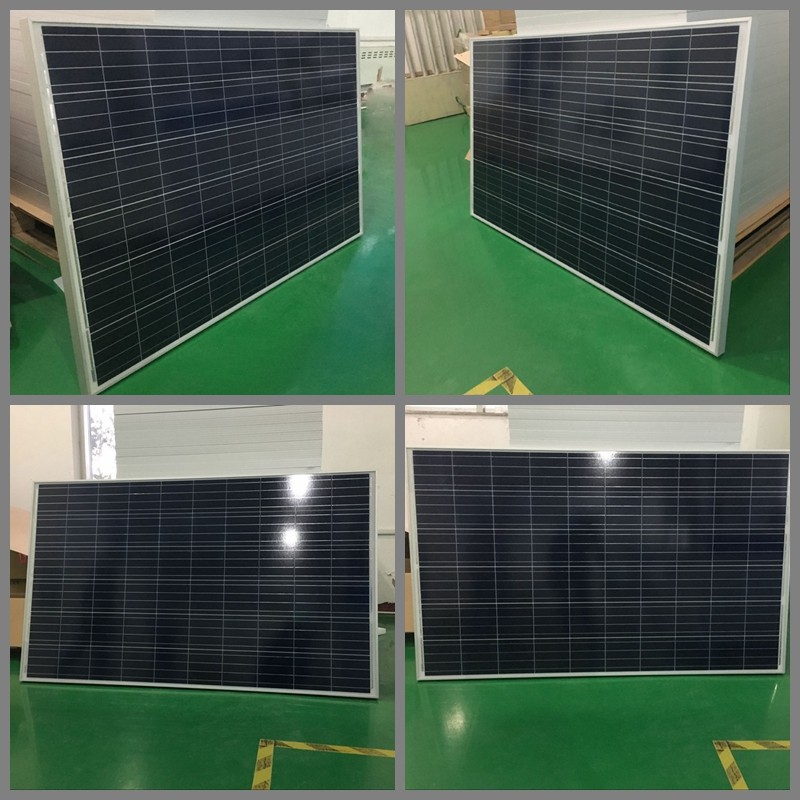

Product picture:

Quick Details

Brand Name:SUFU solar

Dielectric Insulation Voltage:3000V

Operating Temperature(℃):40~+85

Storage Temperature(℃):-40~+60

Model No.(SFP)280W290W300W310W320W330W
Maximum Power at STC(Pmax)280W290W300W310W320W330W
Maximum Power Voltage(Vmp)35.50V35.60V35.80V36.00V36.40V36.80V
Maximum Power Current(Imp)7.89A8.15A8.38A8.61A8.79A8.96A
Open Circult Voltage(Voc)42.60V42.72V42.96V43.20V43.68V44.16V
Short Circuit Current(Isc)8.68A8.96A9.22A9.46A9.66A9.84A
Module Effciency(%)17.2117.8318.4416.0316.5417.06
Maximum System Voltage(V)1000V DC(IEC)
Maximum Series Fuse Rating(A)15A
Power Tolerance(%)0+3%
Pmax Temperature Coefficient-0.42%/
Voc Temperature Coefficient-0.32%/
Isc Temperature Coefficient0.06%/
Storage Temperature From -40to+60
Operating Temperature From -40to+85
*STC(Standard Test Condition):Irradiance 1000w/m2,module temperature 25,AM1.5
Best in Class AAA solar simulator(IEC 60904-9)is used,with power measurement uncertainty within ±3%
Packing Quantity25pcs/carton
Loading Capacity600pcs/40HQ
Solar Cells72(6×12)Monocrystalline silicon Solar Cells 156×156mm
Front Glass3.2mm(0.13in) high-transmission temperes glass
EncapsulantEVA(Ethylene-Vinyl Acetate)
FrameDouble-layer anodized aluminium alloy
Junction BoxIP67 rated,with serviceable bypass diodes
CablesUV resistant solar cable,900mm-section 4.0mm2(12AWG)
ConnectorsMC4 compatible connectors
Max.LoadWind Load:2400Pa/Snow Load:5400Pa


Producttion process

Packaging & Delivery

Packaging Details:packing is suitable for sea transportation

Delivery Time:within 10 days after receiving down payment

Company profile

Qinhuangdao Shanggui Trade Co., Ltd is a modern solar modules,solar system solutions and service supplier.We has two factories named Qinhuangdao sufu Electronic Co.,Ltd and Qinhuangdao Saikanggaungdian Electrical Co.,Ltd .

Our solar products are range from solar modules to solar power systems,solar street lights, solar junction box, and so on.

Company  has a professional experience of R&d,management team.has been offering the world reliable and renewable products which are internationally certified with TUV,CE and ISO9001 etc.The product applies to a wide rangeof clients including Australia,South Amiracles,Middle-east,Southeast Asia and other countries.Company is creating miracles at industrial upgrading,technological innovation,high quality and environmental protection.


· High cell efficiency PV solar panel with quality silicon material for long term output stability and reliability.

· Rigorous quality control to meet the highest international standards.

· High transmittance, low iron tempered glass with enhanced stiffness and impact resistance.

· Unique frame design with high mechanical strength for easy installation.

· Advanced encapsulation material with multilayer sheet lamination to provide long-life and enhanced cell performance.

· Outstanding electrical performance under high temperature and low irradiance conditions.

· 72 Back-Contact polycrystalline Si solar cells (approx. 18.32%).


· Commercial/ industrial building PV solar roof-top off-grid systems.

· Residential PV solar roof-top off-grid systems.

· Any commercial / industrial ground mount off-grid systems.

· Other off-grid industrial and commercial solar PV applications.


· 10 year limited product warranty on materials and workmanship.

· 25 year limited power warranty on power output.

· ≥90% power output assurance for 10 years and ≥80% power output assurance for 25 years.

· Refer to warranty document for detailed warranty information.


· TUV(IEC61215 IEC61730)

· CE
