solar junction box with mc4 connector for BIPV solar panel

solar junction box with mc4 connector for BIPV solar panel

solar junction box with mc4 connector for BIPV solar panel
solar junction box with mc4 connector for BIPV solar panelsolar junction box with mc4 connector for BIPV solar panelsolar junction box with mc4 connector for BIPV solar panelsolar junction box with mc4 connector for BIPV solar panel
CategoriesPV junction box
AlbumView larger image
Brandsufusolar,saikangguangdian,shanggui
ModelPV-SC0903
Overall Dimension85*13.2*12.5mm
Connection Cable1*2.5-4mm2
Insulation MaterialPP
ConnectorMC4
Protection DegreeIP65
The bonding area1100mm²
FunctionBIPV
Terms of PaymentL/C, T/T
Download DOC
Update Time2018-12-15
Detail Information

solar junction box with mc4 connector for BIPV solar panel

Features of special pv junction box for BIPV glass curtain wall

1) excellent high and low temperature, fire resistance, anti-aging and uv resistance, which can meet the long-term use requirements under harsh outdoor environment;

2) excellent waterproof and dustproof effect, and sealed with the irrigation method;

3) the miniature ultra-small shape, simple and practical structure, suitable for thin-film photovoltaic modules, widely used in the field of integrated solar photovoltaic architecture;

4) the connection of the bus bar and cable is respectively welded and pressed, and the electrical performance is safe and reliable.

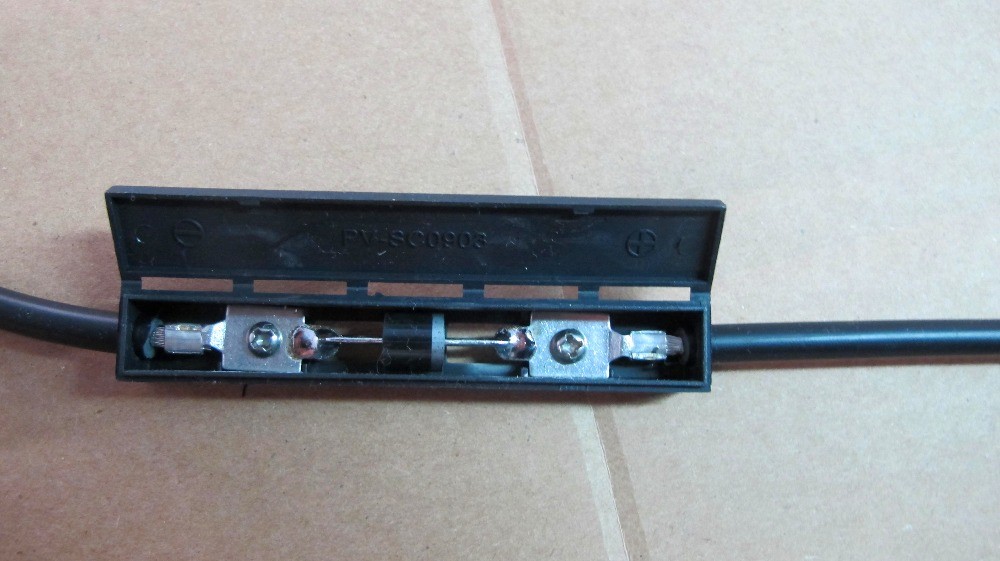

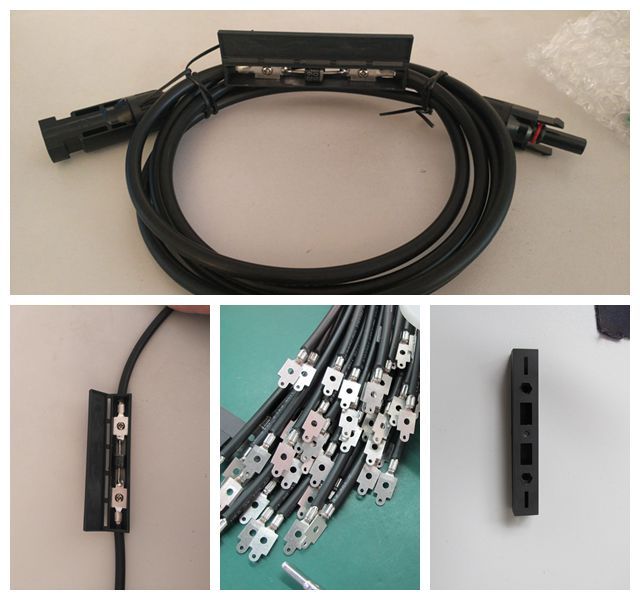

The product photos:

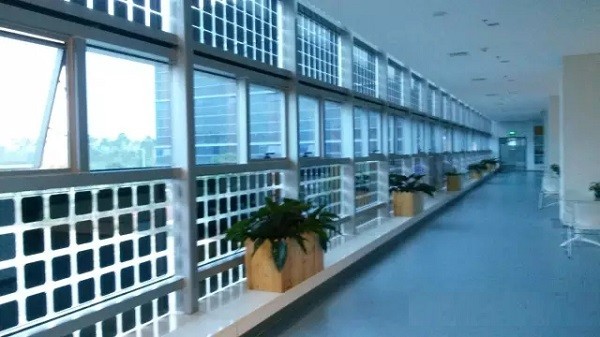

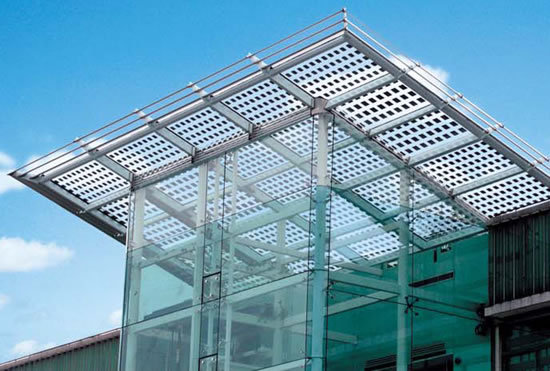

Application:


Technical Data:

Rated Voltage1000VDC
Protection ClassClassII
Protection DegreeIP65
Flame ClassUL94-V0
Temperature Range-40-+85
Connection Cable1*2.5-4mm²
Waterproofing structureGlue potting Seal
Width Of Copper RibbonUp to 6mm
Connection MethodSoldering
Insulation MaterialPP
Contact MaterialCopper alloy,tin plated
Overall Dimension85*13.2*12.5mm
Bonding modeSiliica gel
The bonding area1100mm²
ConnectorMC4


Terms:

 Payment Term: T/T 100% deposit advance based on sample or less than container  quantity order.
                              T/T 30% deposit advance, balance after copy of BL( based on CIF terms)
 Delivery time: 5-7 working days after deposit .

Why choose us?

1.Because we are professional manufacturer of solar accessories for more than 11 years. We have excellent raw suppliers and strong engineering team.

2.Our company has get ISO 9001 and our products passed TUV.

3.Our products terminals installed firmly, and convergence with good weldability to meet the using requirement under bad outdoor condition.
