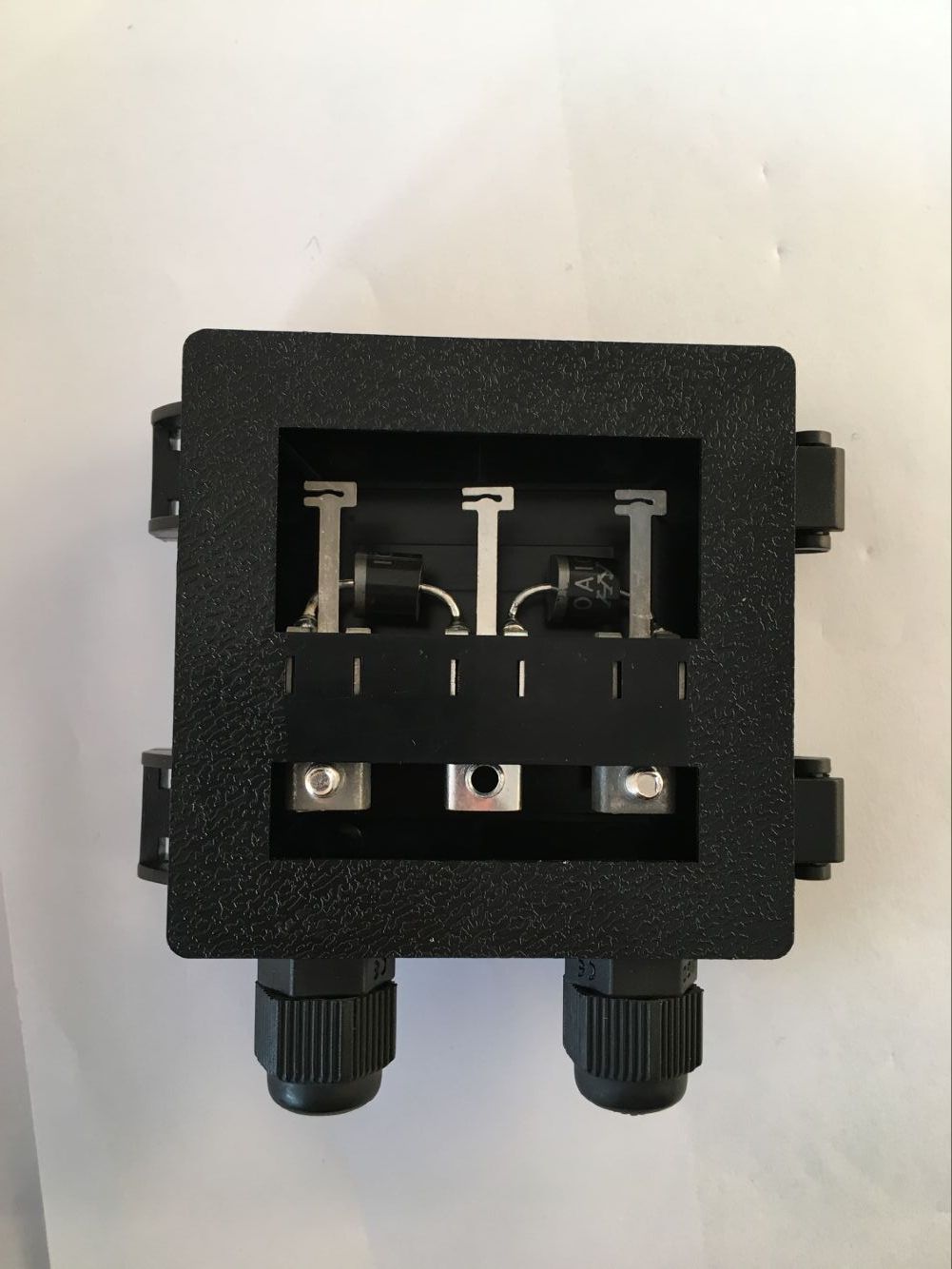

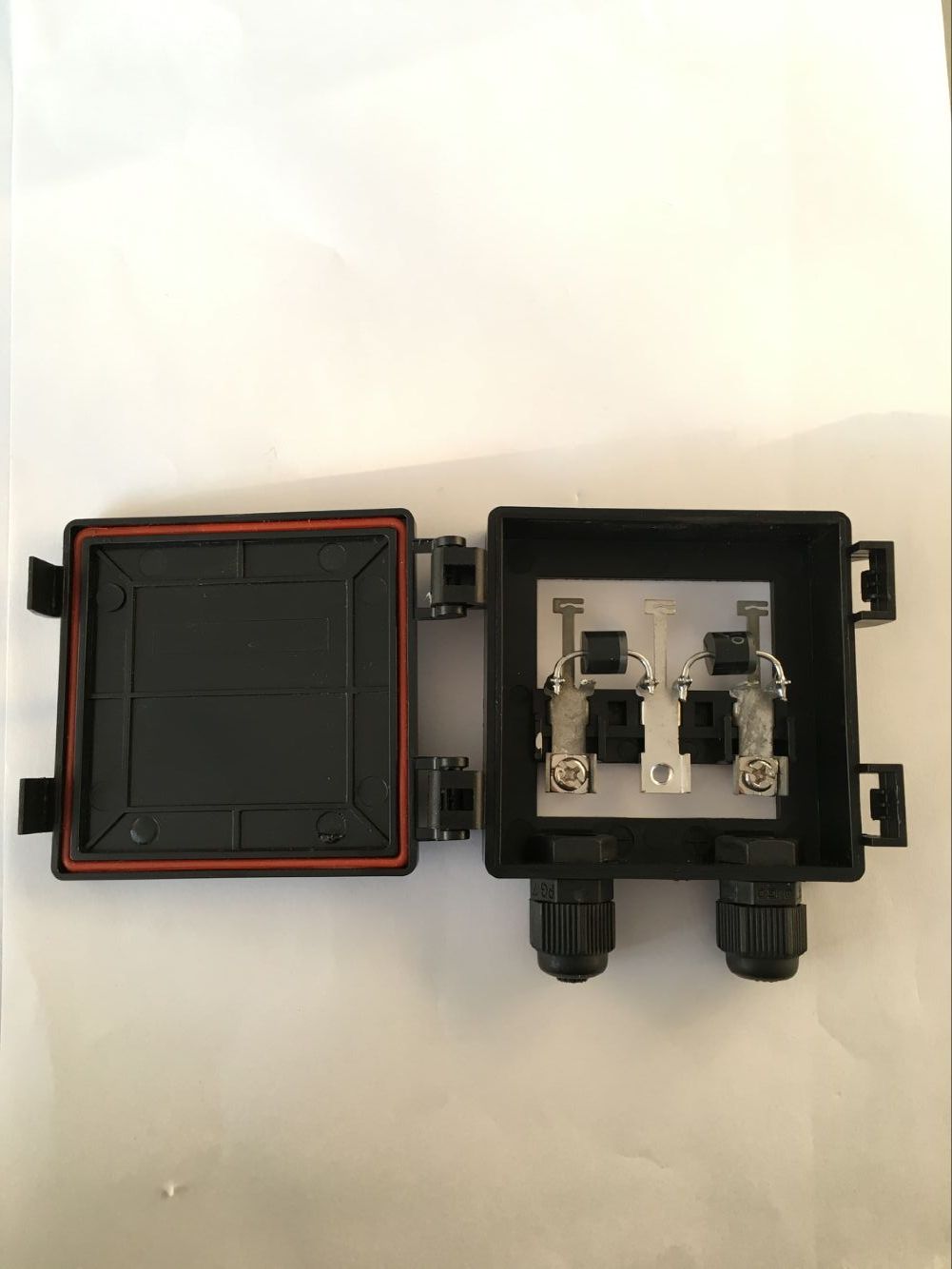

junction box with bypass diode for solar pv 60w 70w 80w 90w 100w

junction box with bypass diode for solar pv 60w 70w 80w 90w 100w

junction box with bypass diode for solar pv 60w 70w 80w 90w 100w
junction box with bypass diode for solar pv 60w 70w 80w 90w 100wjunction box with bypass diode for solar pv 60w 70w 80w 90w 100wjunction box with bypass diode for solar pv 60w 70w 80w 90w 100wjunction box with bypass diode for solar pv 60w 70w 80w 90w 100wjunction box with bypass diode for solar pv 60w 70w 80w 90w 100w
CategoriesPV junction box
AlbumView larger image
Brandsufusolar,saikangguangdian,shanggui
ModelPV-SC0810
Diode2/1
No.of terminal3/2
Diode type10A10
Protection gardeIP65
CertificateTUV
Temperature Range-40℃-+85℃
Rated voltage1000VDC
Insulation MaterialPPO/ABS/PC
Connection MethodSoldering
Protection ClassClass II
FOB portTIANJIN
Terms of PaymentT/T
Download DOC
Update Time2018-12-15
Detail Information

junction box with bypass diode for solar pv 60w 70w 80w 90w 100w






Basic datas

Rated Voltage1000VDC
Protection ClassClass
Protection DegreeIP65
Flame ClassUL94-V0
Temperature Range-40~+85
Connecting Cable1×2.5-4mm2  or  2×1.5-2.5mm2
Waterproofing structureO-ring Seal
Width Of Copper Ribbon  Up to 6mm
Connection MethodSoldering
Insulation MaterialPPO
Contact MaterialCopper alloy, tin plated
Overall Dimension9474×92 (74) ×24mm
Bonding modesilica gel
The bonding area4300mm2
ConnectorPV-SC01





We are professional manufacturer of junction box ,use raw material from sabic , With TUV,.

our company specializes in the R&D,Production and sales of solar PV junction box,PV connectors,LED,Solar panel and other products.We have advanced test instruments,laboratory equipment and solid software and hardware facilities and a good corporate culture.



Junction box Main Speciality :

1.With the capacity of anti-aging and resistance to ultraviolet radiation on the outer cover
2.To meet the using requirement under bad outdoor condition
3.The self-locking function makes the connection mode is more convenient and firm
4.Anti electric shock insulation protection science, has good security
5.Terminals installed firmly, and convergence with good weldability

Terms:

 Payment Term: T/T 100% deposit advance based on sample or less than container  quantity order.
                              T/T 30% deposit advance, balance after copy of BL( based on CIF terms)
 Delivery time: 5-7 working days after deposit .
 Certificate: ISO9001/ISO14001/IEC/TUV
