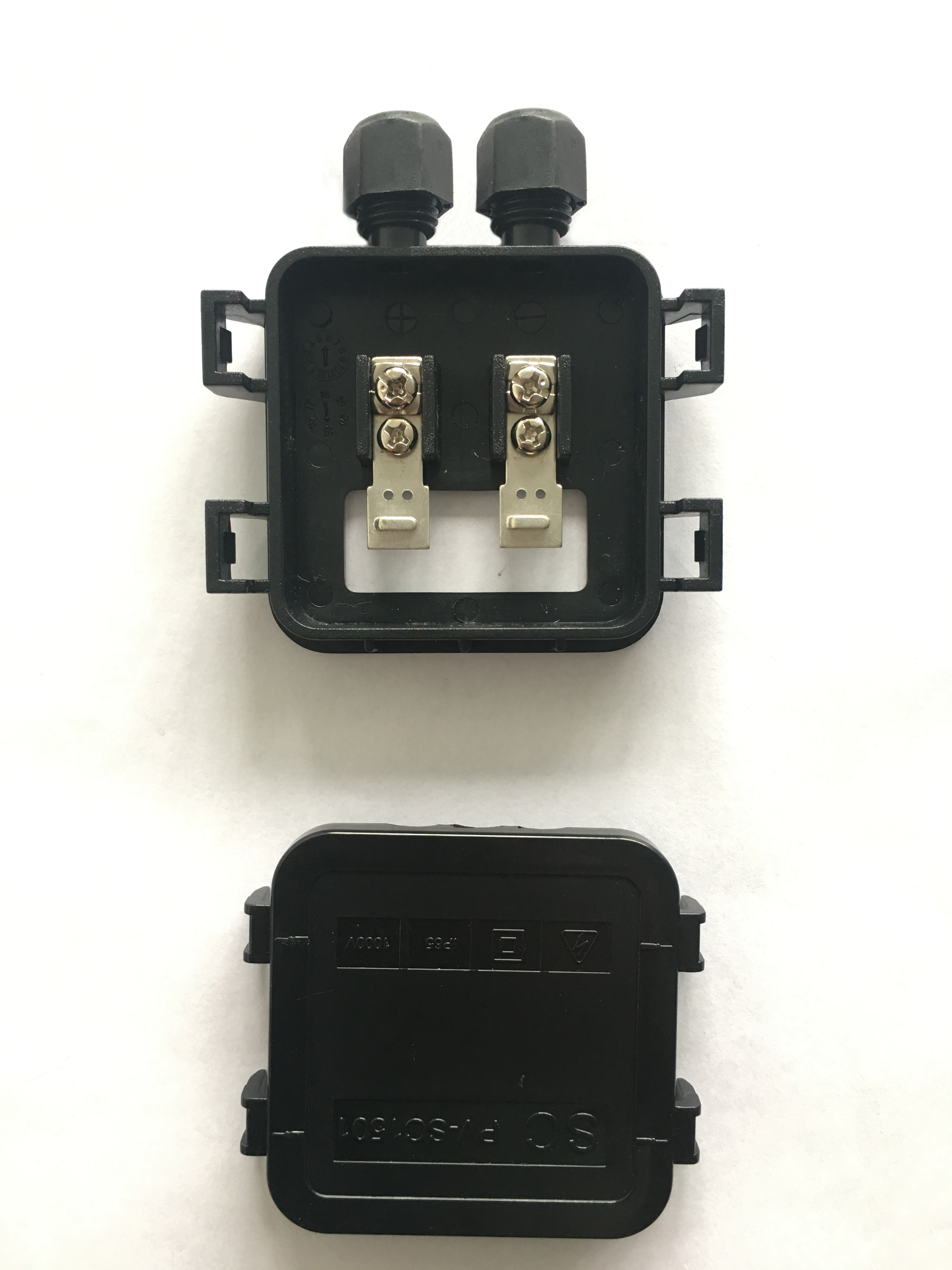

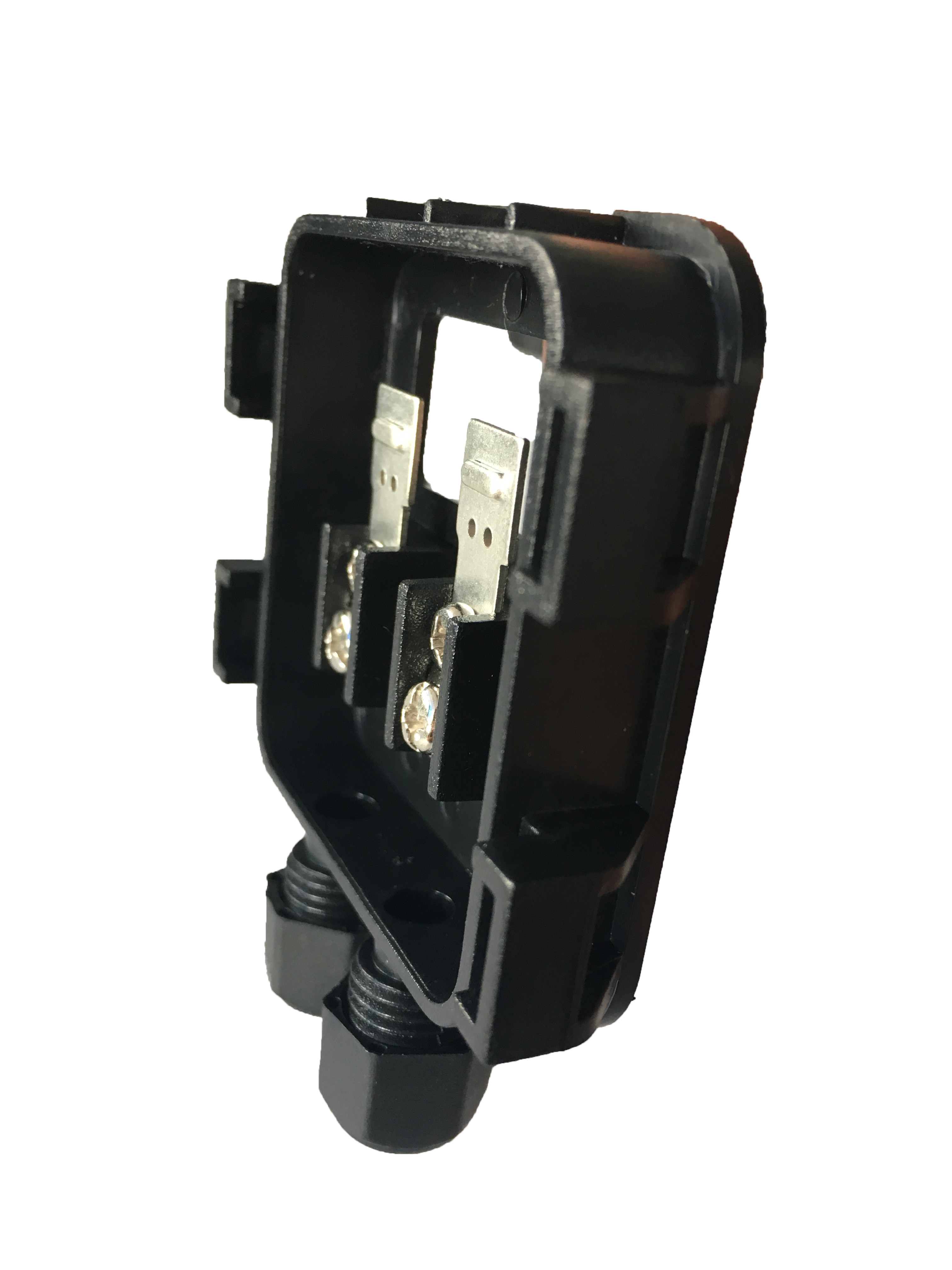

Solar Junction Box PV Connector with 1 Diode for Solar Panel

Solar Junction Box PV Connector with 1 Diode for Solar Panel

Solar Junction Box PV Connector with 1 Diode for Solar Panel
Solar Junction Box PV Connector with 1 Diode for Solar PanelSolar Junction Box PV Connector with 1 Diode for Solar PanelSolar Junction Box PV Connector with 1 Diode for Solar PanelSolar Junction Box PV Connector with 1 Diode for Solar PanelSolar Junction Box PV Connector with 1 Diode for Solar Panel
CategoriesPV junction box
AlbumView larger image
Brandsufusolar,saikangguangdian,shanggui
ModelPV-SC1501
Diode2/1
No.of terminal3/2
Diode type10A10
Protection gardeIP65
Rated voltage1000vdc
protection classclass two
Flame classUL94-V0
Width of copper ribbonup to 6mm
Insulation MaterialPPO(or ABS/PC)
Waterproofing structureO-ring Seal
FOB portTIANJIN
Terms of PaymentT/T
Download DOC
Update Time2018-12-15
Detail Information

Solar Junction Box PV Connector with 1 Diode for Solar Panel







Basic datas

Rated Voltage1000VDC
Protection ClassClass
Protection DegreeIP65
Flame ClassUL94-V0
Temperature Range-40~+85
Connecting Cable2×0.3-1.5mm2  or  1×2.5-4mm2
Waterproofing structureO-ring Seal
Width Of Copper Ribbon  Up to 6mm
Connection MethodSoldering
Insulation MaterialPPO(or ABS/PC)
Contact MaterialCopper alloy, tin plated
Overall Dimension79(65×78 (65) ×18mm
Bonding modesilica gel
The bonding area2000mm2
ConnectorA:NO     B:PV-SC01





We are professional manufacturer of junction box ,use raw material from sabic , With TUV,.

our company specializes in the R&D,Production and sales of solar PV junction box,PV connectors,LED,Solar panel and other products.We have advanced test instruments,laboratory equipment and solid software and hardware facilities and a good corporate culture.



Junction box Main Speciality :

1.With the capacity of anti-aging and resistance to ultraviolet radiation on the outer cover
2.To meet the using requirement under bad outdoor condition
3.The self-locking function makes the connection mode is more convenient and firm
4.Anti electric shock insulation protection science, has good security
5.Terminals installed firmly, and convergence with good weldability

Terms:

 Payment Term: T/T 100% deposit advance based on sample or less than container  quantity order.
                              T/T 30% deposit advance, balance after copy of BL( based on CIF terms)
 Delivery time: 5-7 working days after deposit .
 Certificate: ISO9001/ISO14001/IEC/TUV
