solar panel dc pv junction box for solar panel from 200w to 300w

solar panel dc pv junction box for solar panel from 200w to 300w

solar panel dc pv junction box for solar panel from 200w to 300w
solar panel dc pv junction box for solar panel from 200w to 300wsolar panel dc pv junction box for solar panel from 200w to 300wsolar panel dc pv junction box for solar panel from 200w to 300wsolar panel dc pv junction box for solar panel from 200w to 300wsolar panel dc pv junction box for solar panel from 200w to 300w
CategoriesPV junction box
AlbumView larger image
Brandsufusolar,saikangguangdian,shanggui
ModelPV-SC1502
characteristicpotting glue filling
CertificationTUV
StandardEN 50548:2011+A1
Protection ClassClass two
Rated Voltage1000VDC
Test Voltage6000V(50Hz 1min)
Rated Current12A
Protection DegreeIP67
Flame ClassUL94-V0
Temperature Range-40℃~+85℃
FOB portTIANJIN
Terms of PaymentL/C, T/T
Download DOC
Update Time2018-12-15
Detail Information

solar panel dc pv junction box for solar panel from 200w to 300w

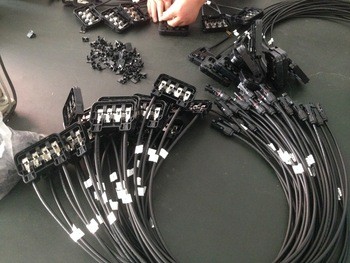

Whole image:











Basic datas :

High quality solar panel junction box ip65 with 4mmsolar pv cable1000VDC
Protection classClassII
Protection DegreeIP65
Flame ClassUL94-V0
Temperature Range-40-+85
Connection Cable1*4mm2
Waterproofing structureO-ring Seal
Width Of Copper RibbonUp to 6mm
Connection MethodSoldering
Insulation MaterialPPO(or ABS/PC)
Contact MaterialCopper alloy,tin plated
Overall Dimension95.4*73*15
Bonding modeSiliica gel
The bonding area5400mm2
ConnectorMC4


Main Speciality :

1.With the capacity of anti-aging and resistance to ultraviolet radiation on the outer cover
2.To meet the using requirement under bad outdoor condition
3.The self-locking function makes the connection mode is more convenient and firm
4.Anti electric shock insulation protection science, has good security
5.Terminals installed firmly, and convergence with good weldability

Terms:

 Payment Term: T/T 100% deposit advance based on sample or less than container  quantity order.
                              T/T 30% deposit advance, balance after copy of BL( based on CIF terms)
 Delivery time: 5-7 working days after deposit .

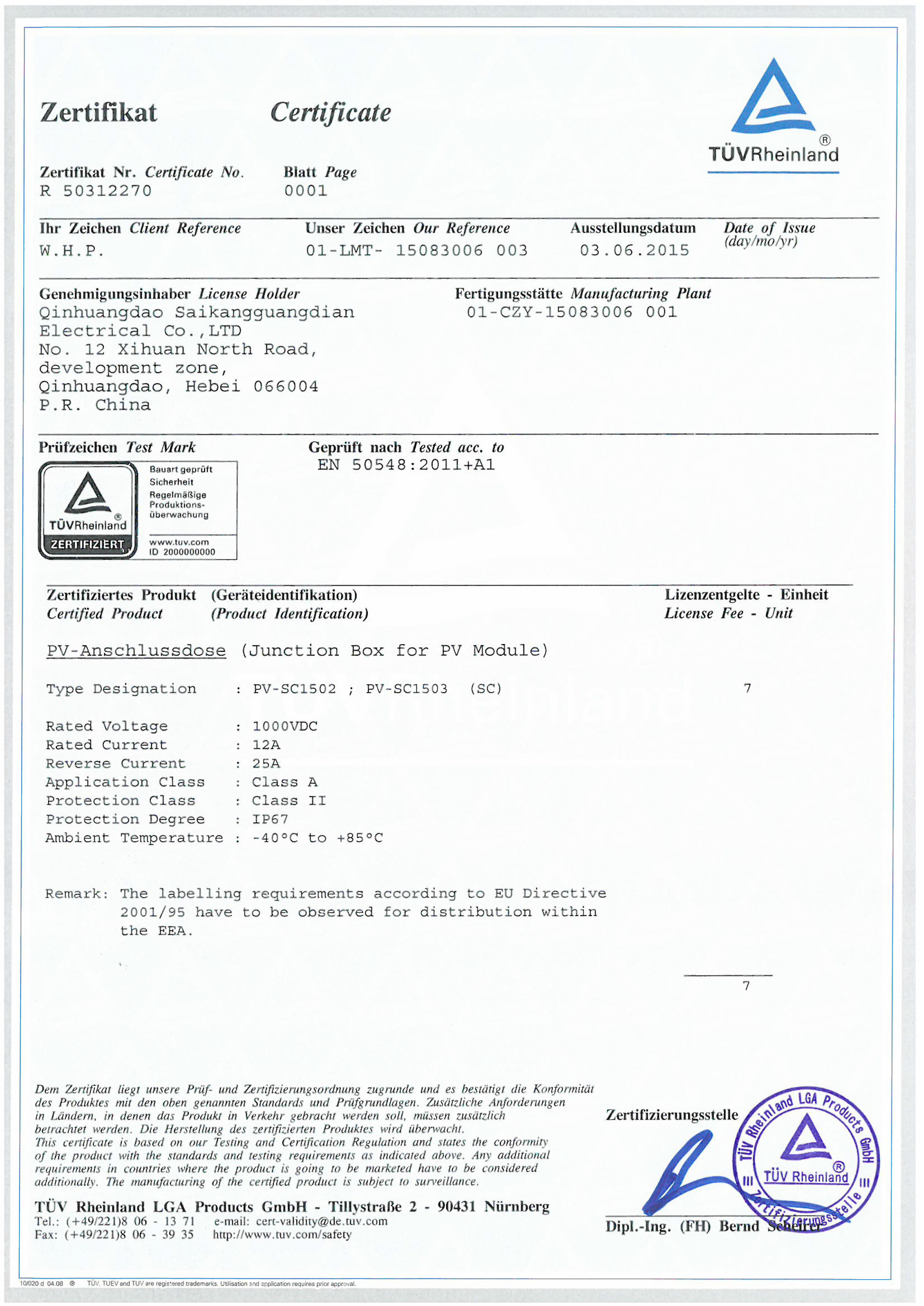

 Certificate: ISO9001/ISO14001/IEC/TUV
