Solar Junction Box of solar mouwith Cable MC4 Connector

Solar Junction Box of solar mouwith Cable MC4 Connector

Solar Junction Box of solar mouwith Cable MC4 Connector
Solar Junction Box of solar mouwith Cable MC4 ConnectorSolar Junction Box of solar mouwith Cable MC4 ConnectorSolar Junction Box of solar mouwith Cable MC4 ConnectorSolar Junction Box of solar mouwith Cable MC4 ConnectorSolar Junction Box of solar mouwith Cable MC4 Connector
CategoriesPV junction box
AlbumView larger image
Brandsufusolar,saikangguangdian,shanggui
ModelPV-SC0902
CertificationTUV
Rated voltage1000vdc
Rated current11A
Protection degreeIP65
Connection cable1*4mm2
MaterialPPO
Contact materialCopper alloy,tin plated
Terminal No.4
Diode No.3
Application200w-300w solar panel
FOB portTIANJIN
Terms of PaymentL/C, T/T
Download DOC
Update Time2018-12-15
Detail Information

Solar Junction Box of solar mouwith Cable MC4 Connector

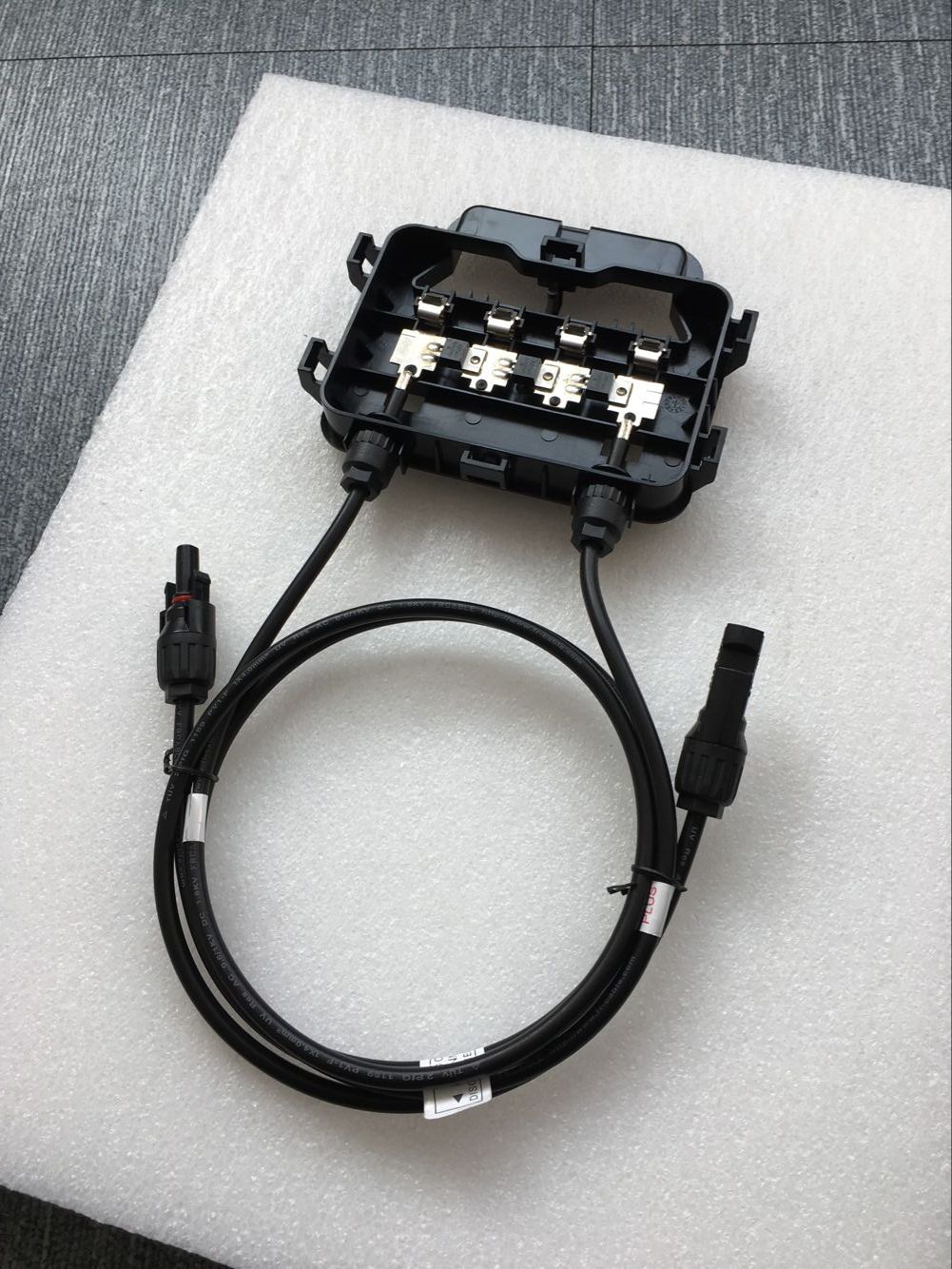

Whole image








Basic datas


High quality solar panel junction box ip65 with 4mmsolar pv cable1000VDC
Protection classClassII
Protection DegreeIP65
Flame ClassUL94-V0
Temperature Range-40-+85
Connection Cable1*4mm2
Waterproofing structureO-ring Seal
Width Of Copper RibbonUp to 6mm
Connection MethodSoldering
Insulation MaterialPPO(or ABS/PC)
Contact MaterialCopper alloy,tin plated
Overall Dimension142(96)*151(138*25.6mm
Bonding modeSiliica gel
The bonding area5400mm2
ConnectorMC4


What do you care about?  Answers here!

Q1. 1.Are you factory or trade company?
A1: We are solar panel factory with over 10 years history.
Q2. Can we customize the size of the solar panel?
A2: Yes, we accept customized order with MOQ 100 pcs
Q3. What kind of certification do you have ?
A3: Our solar panels are approved by CE, SGS, ROHS, SONCAP, UL,VDE IEC,etc.
Q4. What is the warranty for the solar panel?
A4: 10 years warranty
Q5. What is the terms of payment?
A5: T/T, L/C, western union, trade assurance or cash; 30% for deposit, the balance 70% before shipment.
Q6. What is the delivery time?
A6: 3-15days after receiving payment.
