Solar Junction Box PV Connector with 4 Diodes for Solar Panel 200W-300W 10A

Solar Junction Box PV Connector with 4 Diodes for Solar Panel 200W-300W 10A

Solar Junction Box PV Connector with 4 Diodes for Solar Panel 200W-300W 10A
Solar Junction Box PV Connector with 4 Diodes for Solar Panel 200W-300W 10ASolar Junction Box PV Connector with 4 Diodes for Solar Panel 200W-300W 10ASolar Junction Box PV Connector with 4 Diodes for Solar Panel 200W-300W 10ASolar Junction Box PV Connector with 4 Diodes for Solar Panel 200W-300W 10ASolar Junction Box PV Connector with 4 Diodes for Solar Panel 200W-300W 10A
CategoriesPV junction box
AlbumView larger image
Brandsufusolar,saikangguangdian,shanggui
ModelPV-SC0902
characteristicpotting glue filling

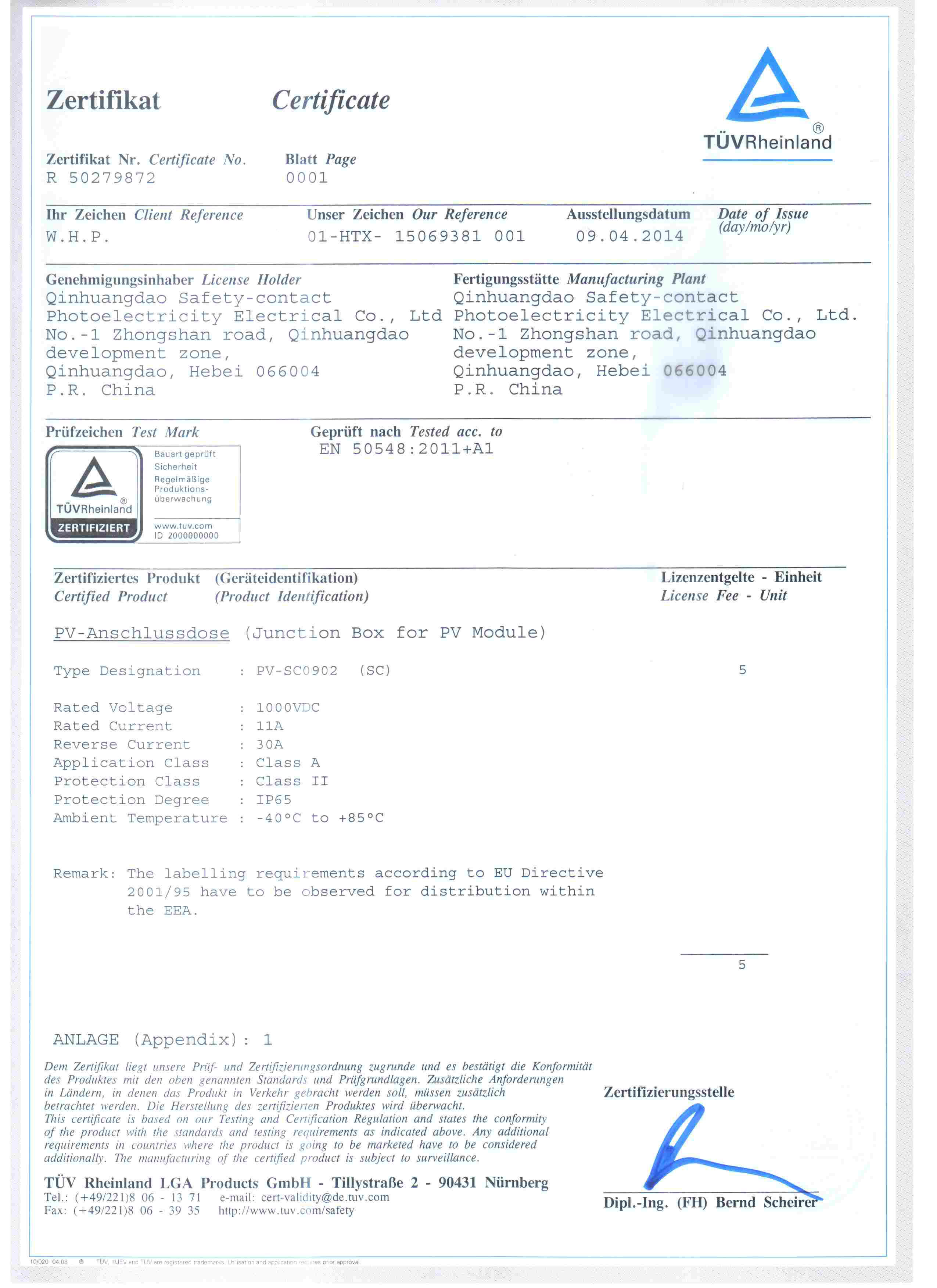

CertificationTUV
StandardEN 50548:2011+A1
Protection ClassClass two
Terminal No.4
Diode No.3
Rated Voltage1000VDC
Connecting Cable4mm2
Insulation MaterialPPO
Contact MaterialCopper alloy,Nickel Plated
FOB portTIANJIN
Terms of PaymentL/C, T/T
Download DOC
Update Time2018-12-15
Detail Information

Solar Junction Box PV Connector with 4 Diodes for Solar Panel 200W-300W 10A

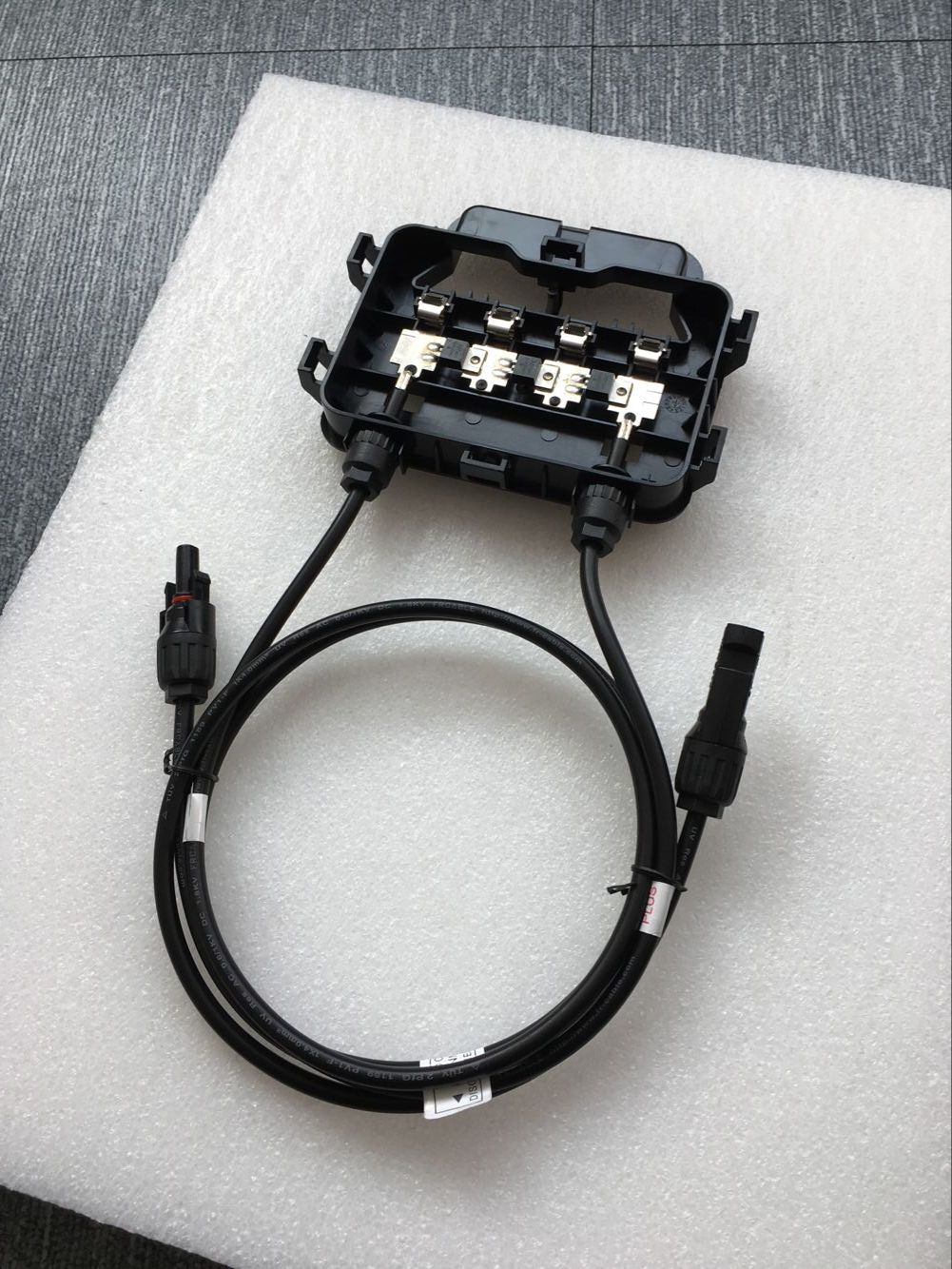

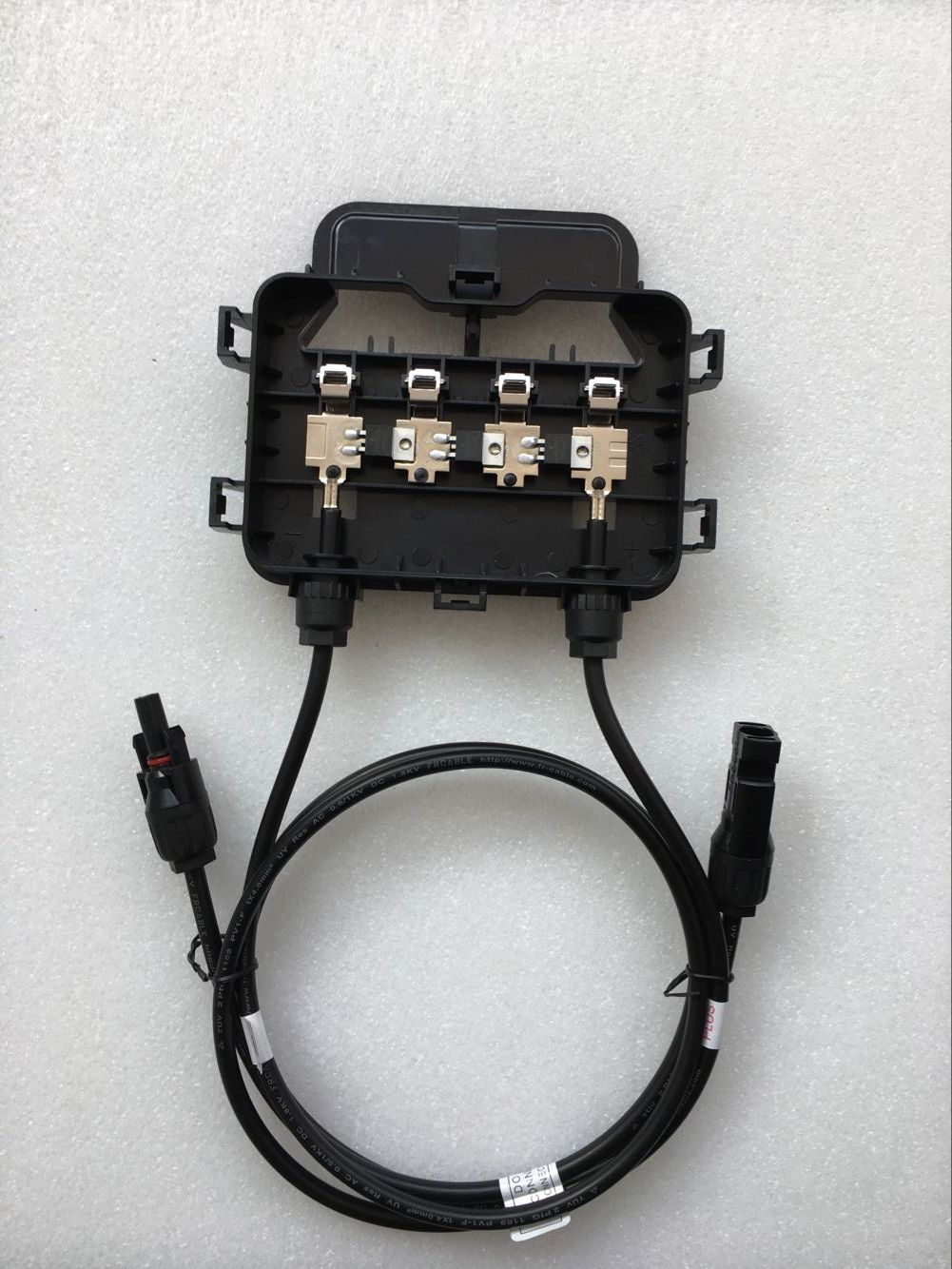

Whole image:











Basic datas :

High quality solar panel junction box ip65 with 4mmsolar pv cable1000VDC
Protection classClassII
Protection DegreeIP65
Flame ClassUL94-V0
Temperature Range-40-+85
Connection Cable1*4mm2
Waterproofing structureO-ring Seal
Width Of Copper RibbonUp to 6mm
Connection MethodSpring Clamping
Insulation MaterialPPO
Contact MaterialCopper alloy,tin plated
Overall Dimension142(96)*151(138)*25.6mm
Bonding modeSiliica gel
The bonding area5400mm2
ConnectorMC4


Main Speciality :

1.With the capacity of anti-aging and resistance to ultraviolet radiation on the outer cover
2.To meet the using requirement under bad outdoor condition
3.The self-locking function makes the connection mode is more convenient and firm
4.Anti electric shock insulation protection science, has good security
5.Terminals installed firmly, and convergence with good weldability

Terms:

 Payment Term: T/T 100% deposit advance based on sample or less than container  quantity order.
                              T/T 30% deposit advance, balance after copy of BL( based on CIF terms)
 Delivery time: 5-7 working days after deposit .
 Certificate: ISO9001/ISO14001/IEC/TUV
