solar dc junction box china for 200w to 300w solar panel
| Categories | PV junction box |
|---|---|
| Album | View larger image |
| Brand | sufusolar,saikangguangdian,shanggui |
| Model | PV-SC0902 |
| Certification | TUV |
| Rated voltage | 1000vdc |
| Rated current | 11A |
| Protection degree | IP65 |
| Connection cable | 1*4mm2 |
| Material | PPO |
| Contact material | Copper alloy,tin plated |
| Max.working voltage | 100VDC |
| Terminal No. | 4 |
| Diode No. | 3 |
| FOB port | TIANJIN |
| Terms of Payment | L/C, T/T |
| Download DOC |  |
| Update Time | 2018-12-15 |
Detail Information
solar dc junction box china for 200w to 300w solar panel

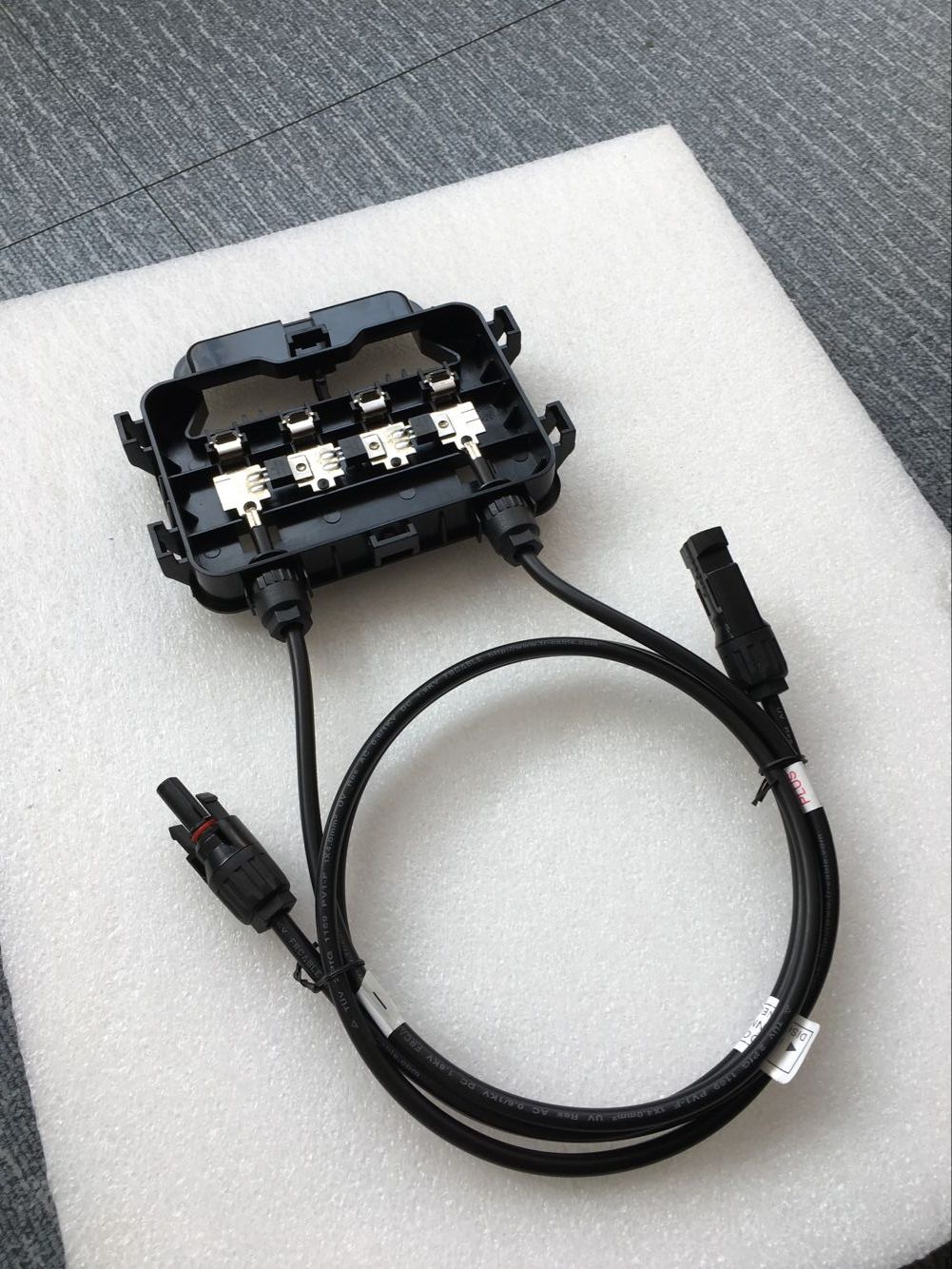

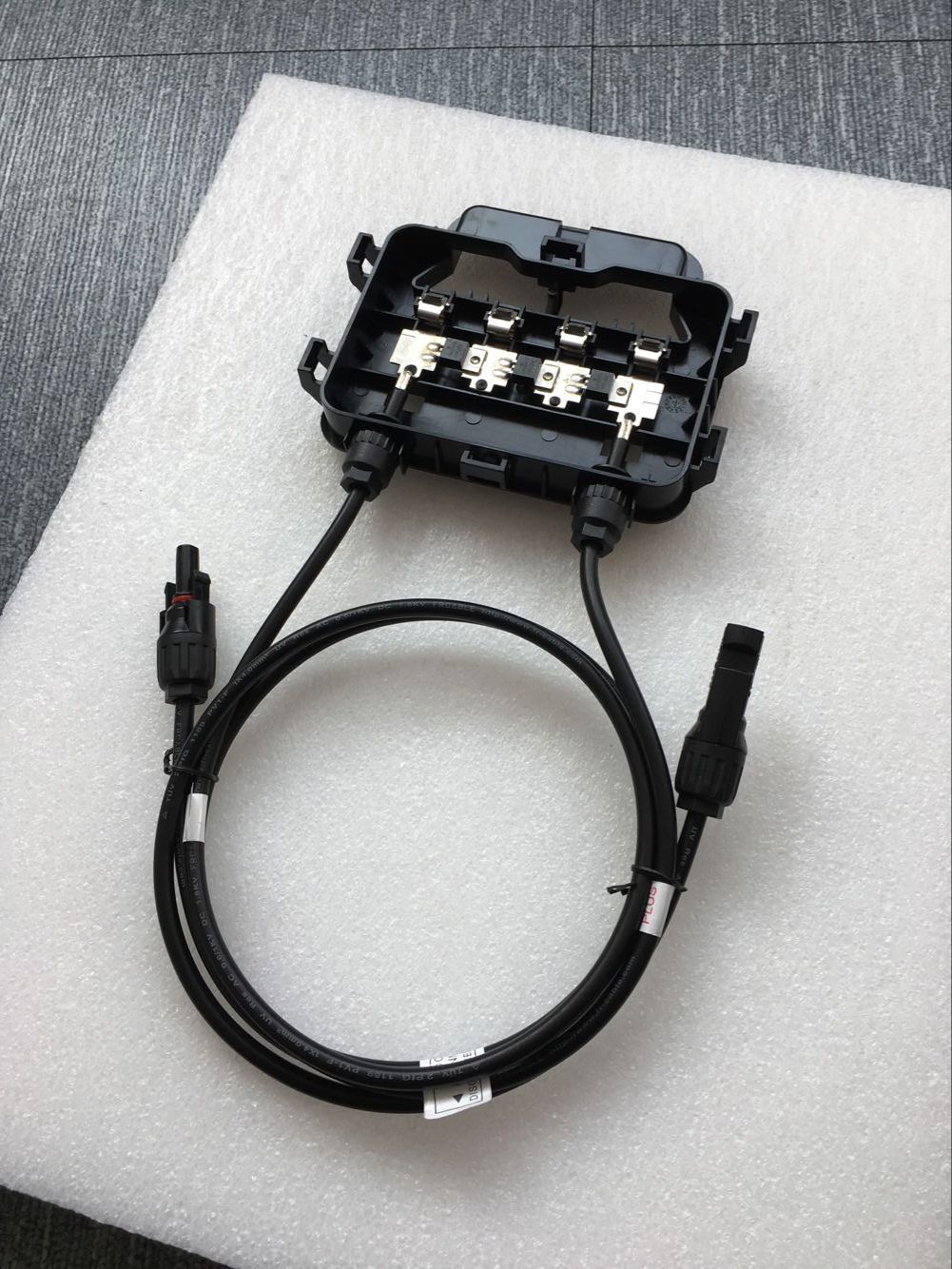

Whole image
Basic datas
| High quality solar panel junction box ip65 with 4mmsolar pv cable | 1000VDC |
| Protection class | ClassII |
| Protection Degree | IP65 |
| Flame Class | UL94-V0 |
| Temperature Range | -40℃-+85℃ |
| Connection Cable | 1*4mm2 |
| Waterproofing structure | O-ring Seal |
| Width Of Copper Ribbon | Up to 6mm |
| Connection Method | Soldering |
| Insulation Material | PPO(or ABS/PC) |
| Contact Material | Copper alloy,tin plated |
| Overall Dimension | 142(96)*151(138）*25.6mm |
| Bonding mode | Siliica gel |
| The bonding area | 5400mm2 |
| Connector | MC4 |
What do you care about? Answers here!
Q1. 1.Are you factory or trade company?
A1: We are solar panel factory with over 10 years history.
Q2. Can we customize the size of the solar panel?
A2: Yes, we accept customized order with MOQ 100 pcs
Q3. What kind of certification do you have ?
A3: Our solar panels are approved by CE, SGS, ROHS, SONCAP, UL,VDE IEC,etc.
Q4. What is the warranty for the solar panel?
A4: 10 years warranty
Q5. What is the terms of payment?
A5: T/T, L/C, western union, trade assurance or cash; 30% for deposit, the balance 70% before shipment.
Q6. What is the delivery time?
A6: 3-15days after receiving payment.
