junction box with MC4 connector+ cable, suitable for solar panel 60 to 150w, solar junction box, pv junction box

junction box with MC4 connector+ cable, suitable for solar panel 60 to 150w, solar junction box, pv junction box

junction box with MC4 connector+ cable, suitable for solar panel 60 to 150w, solar junction box, pv junction box
junction box with MC4 connector+ cable, suitable for solar panel 60 to 150w, solar junction box, pv junction boxjunction box with MC4 connector+ cable, suitable for solar panel 60 to 150w, solar junction box, pv junction boxjunction box with MC4 connector+ cable, suitable for solar panel 60 to 150w, solar junction box, pv junction boxjunction box with MC4 connector+ cable, suitable for solar panel 60 to 150w, solar junction box, pv junction boxjunction box with MC4 connector+ cable, suitable for solar panel 60 to 150w, solar junction box, pv junction box
CategoriesPV junction box
AlbumView larger image
Brandsufusolar,saikangguangdian,shanggui
ModelPV-SC1102
Rated Voltage1000VDC
Protection ClassClass two
Protection DegreeIP65
ConnectorPV-SC01
CertificateTUV
Connector typeDC Power Connector
MaterialPVC
Temperature Range-40C~+85C
Frequency50Hz
FOB portTIANJIN
Terms of PaymentL/C, T/T
Download DOC
Update Time2018-12-15
Detail Information
junction box with MC4 connector+ cable, suitable for solar panel 60 to 150w, solar junction box, pv junction box

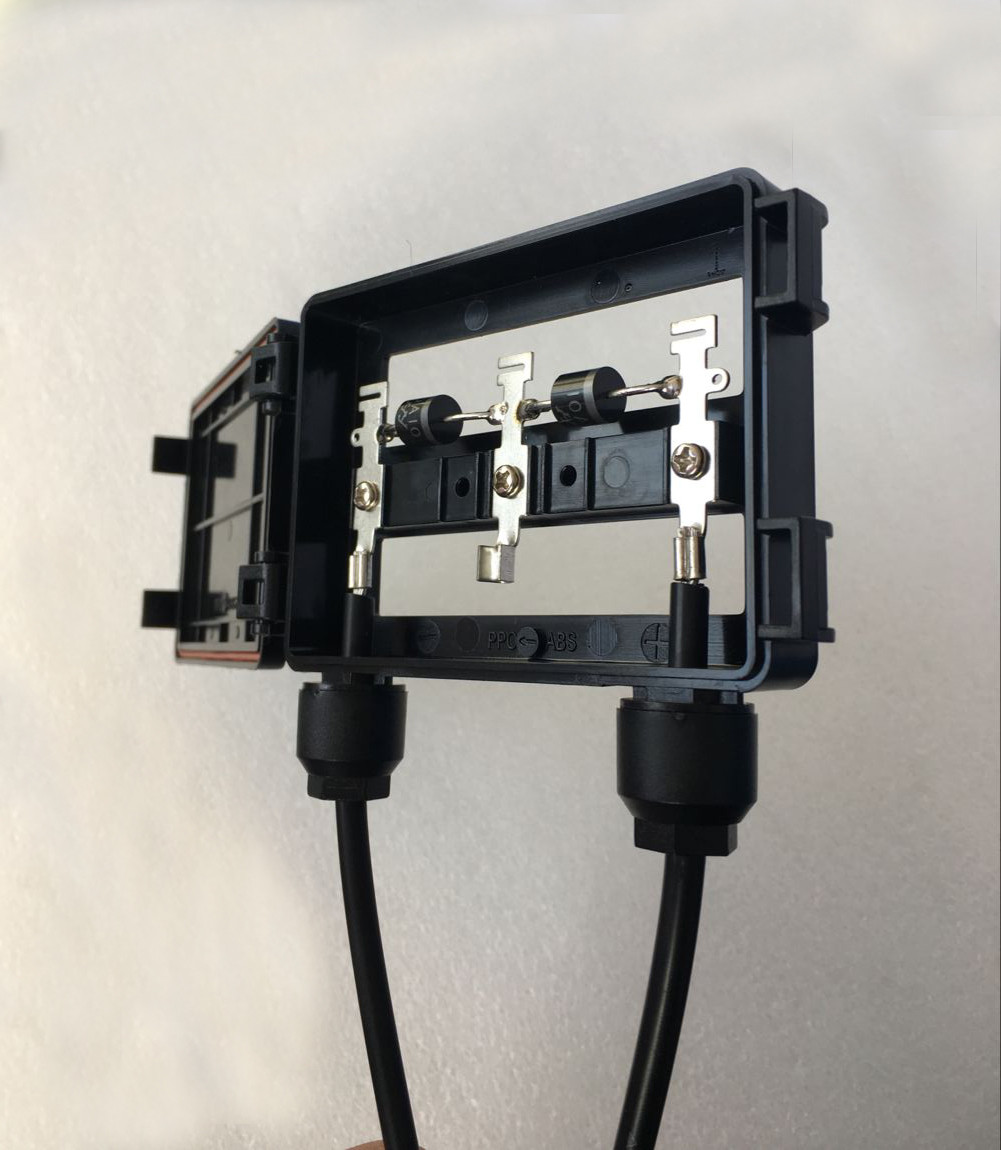

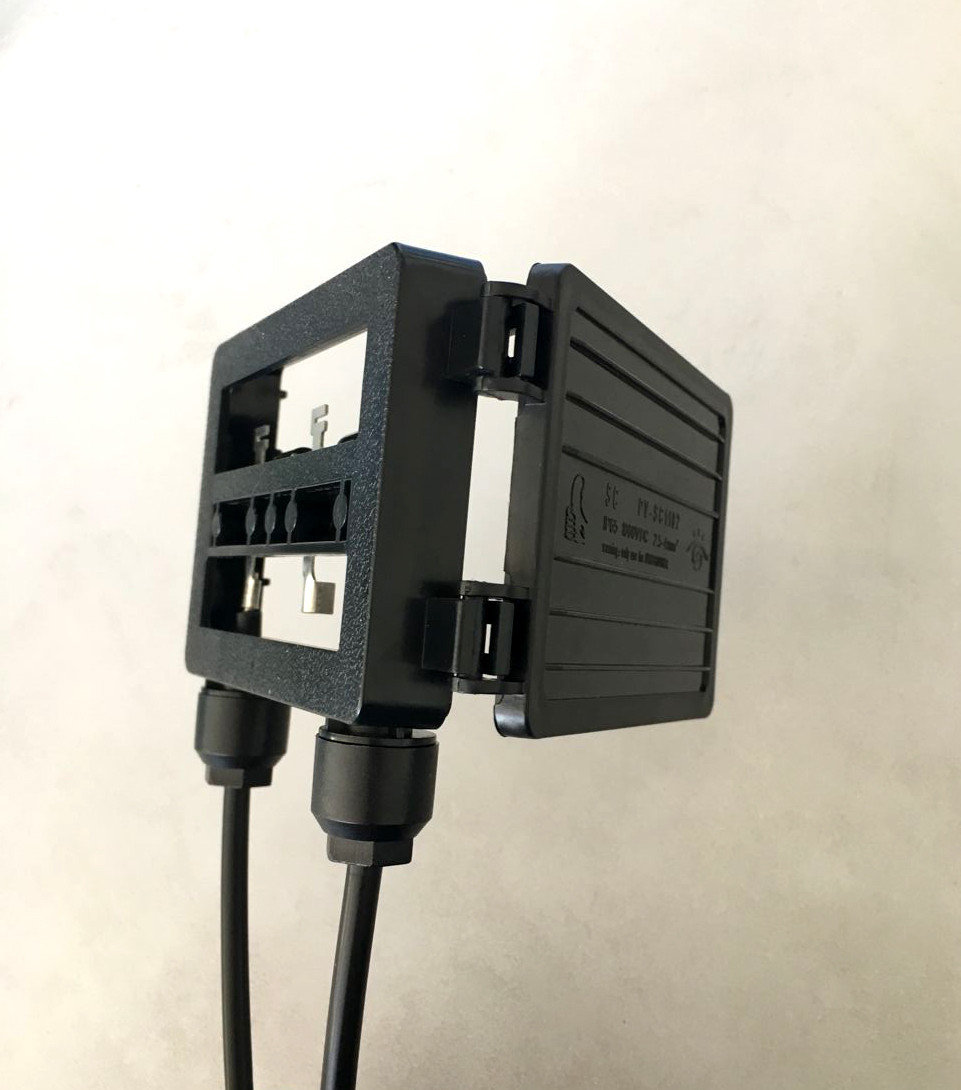

Whole image:




Basic datas
High quality solar panel junction box ip65 with 4mmsolar pv cable1000VDC
Protection classClassII
Protection DegreeIP65
Flame ClassUL94-V0
Temperature Range-40-+85
Connection Cable1*2.5-4mm2  or 2*1.5-2.5mm2
Waterproofing structureO-ring Seal
Width Of Copper RibbonUp to 6mm
Connection MethodSoldering
Insulation MaterialPPO(or ABS/PC)
Contact MaterialCopper alloy,tin plated

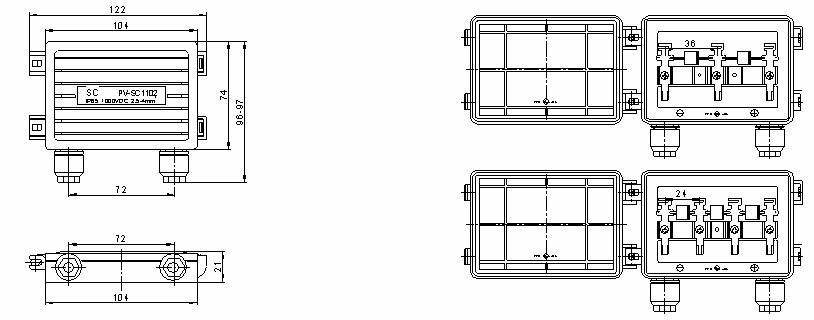

Overall Dimension96(74)*122(104*21mm
Bonding modeSiliica gel
The bonding area5400mm2
ConnectorMC4



Main Speciality :

1.With the capacity of anti-aging and resistance to ultraviolet radiation on the outer cover
2.To meet the using requirement under bad outdoor condition
3.The self-locking function makes the connection mode is more convenient and firm
4.Anti electric shock insulation protection science, has good security
5.Terminals installed firmly, and convergence with good weldability

Terms:

 Payment Term: T/T 100% deposit advance based on sample or less than container  quantity order.
                              T/T 30% deposit advance, balance after copy of BL( based on CIF terms)
 Delivery time: 5-7 working days after deposit .
 Certificate: ISO9001/ISO14001/IEC/TUV
