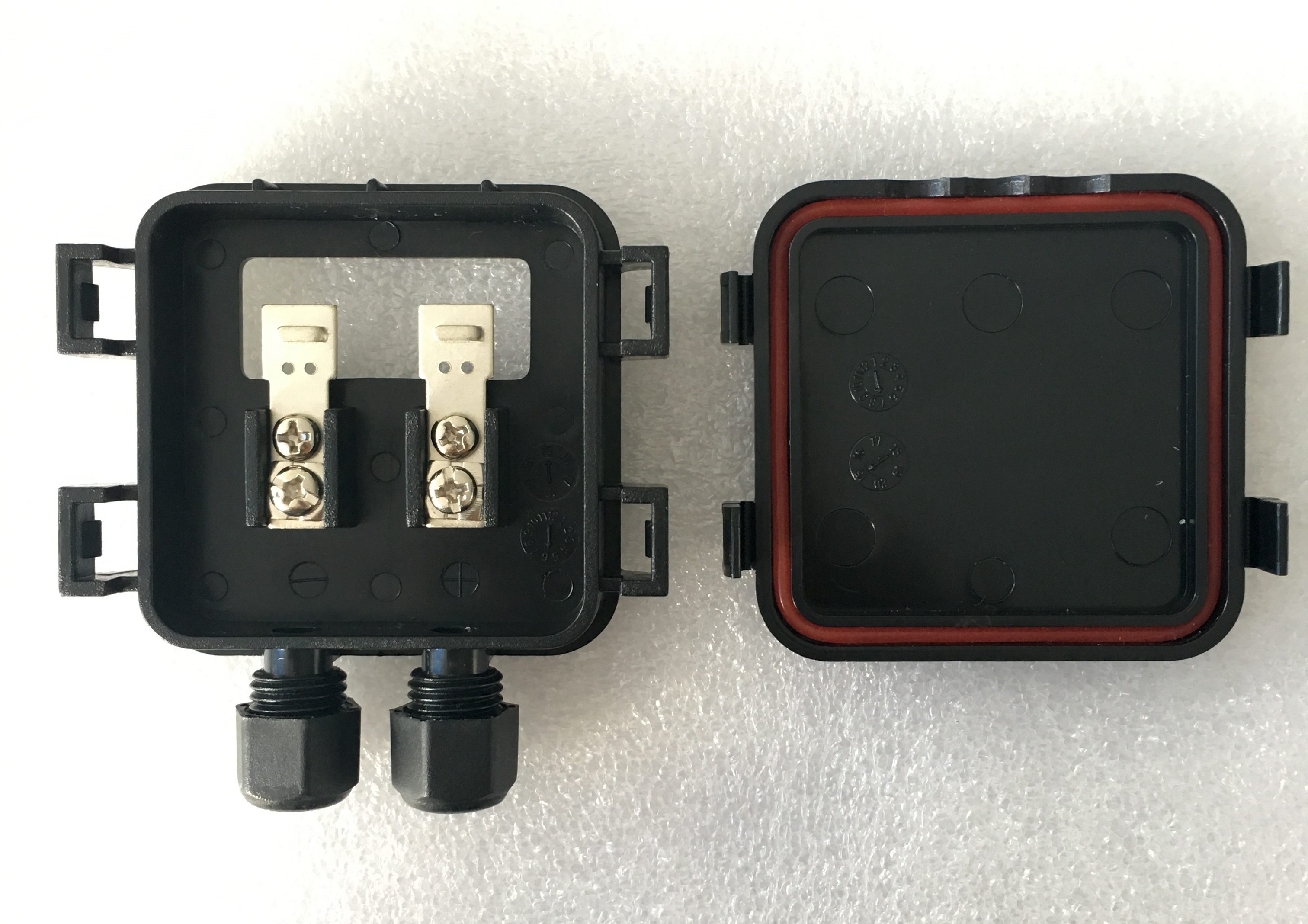

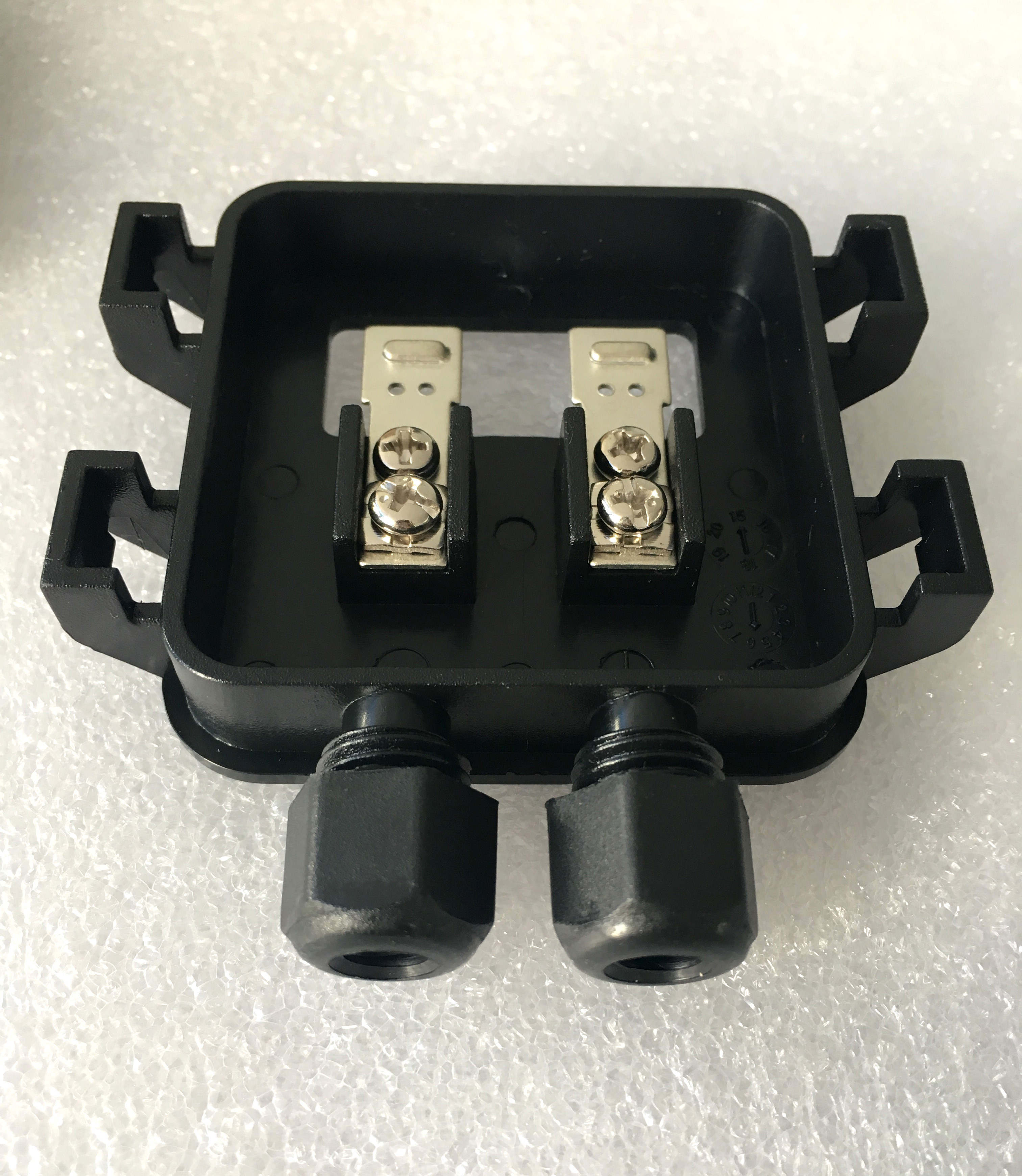

solar junction box for solar pv module 20w 30w manufacturers in china
solar junction box for solar pv module 20w 30w manufacturers in china
| Categories | PV junction box |
|---|---|
| Album | View larger image |
| Brand | sufusolar,saikangguangdian,shanggui |
| Model | PV-SC1501 |
| Diode | 2/1 |
| No.of terminal | 3/2 |
| Diode type | 10A10 |
| Protection garde | IP65 |
| protection class | class two |
| Flame class | UL94-V0 |
| Width of copper ribbon | up to 6mm |
| Insulation Material | PPO(or ABS/PC) |
| Waterproofing structure | O-ring Seal |
| Bonding mode | silica gel |
| FOB port | TIANJIN |
| Terms of Payment | T/T |
| Download DOC |  |
| Update Time | 2019-02-23 |
Detail Information
solar junction box for solar pv module 20w 30w manufacturers in china
Basic datas
| Rated Voltage | 1000VDC |
| Protection Class | Class Ⅱ |
| Protection Degree | IP65 |
| Flame Class | UL94-V0 |
| Temperature Range | -40℃~+85℃ |
| Connecting Cable | 2×0.3-1.5mm2 or 1×2.5-4mm2 |
| Waterproofing structure | O-ring Seal |
| Width Of Copper Ribbon | Up to 6mm |
| Connection Method | Soldering |
| Insulation Material | PPO（or ABS/PC) |
| Contact Material | Copper alloy, tin plated |
| Overall Dimension | 79（65）×78 (65) ×18mm |
| Bonding mode | silica gel |
| The bonding area | 2000mm2 |
| Connector | A:NO B:PV-SC01 |
We are professional manufacturer of junction box ,use raw material from sabic , With TUV,.
our company specializes in the R&D,Production and sales of solar PV junction box,PV connectors,LED,Solar panel and other products.We have advanced test instruments,laboratory equipment and solid software and hardware facilities and a good corporate culture.
Junction box Main Speciality :
1.With the capacity of anti-aging and resistance to ultraviolet radiation on the outer cover
2.To meet the using requirement under bad outdoor condition
3.The self-locking function makes the connection mode is more convenient and firm
4.Anti electric shock insulation protection science, has good security
5.Terminals installed firmly, and convergence with good weldability
Terms:
Payment Term: T/T 100% deposit advance based on sample or less than container quantity order.
T/T 30% deposit advance, balance after copy of BL( based on CIF terms)
T/T 30% deposit advance, balance after copy of BL( based on CIF terms)
Delivery time: 5-7 working days after deposit .
Certificate: ISO9001/ISO14001/IEC/TUV
