T Type Connector Male to Female MC4 Coupler IP67

T Type Connector Male to Female MC4 Coupler IP67

T Type Connector Male to Female MC4 Coupler IP67
T Type Connector Male to Female MC4 Coupler IP67T Type Connector Male to Female MC4 Coupler IP67T Type Connector Male to Female MC4 Coupler IP67T Type Connector Male to Female MC4 Coupler IP67T Type Connector Male to Female MC4 Coupler IP67
CategoriesSolar connector
AlbumView larger image
Brandsufusolar,saikangguangdian,shanggui
ModelPV-SC03-1
Rated Voltage1000VDC
Test Voltage6000v(50Hz 1min)
Rated Current30A
Protection degreeIP67
FOB portTIANJIN
Terms of PaymentL/C, T/T
Download DOC
Update Time2018-12-15
Detail Information

T Type Connector Male to Female MC4 Coupler IP67

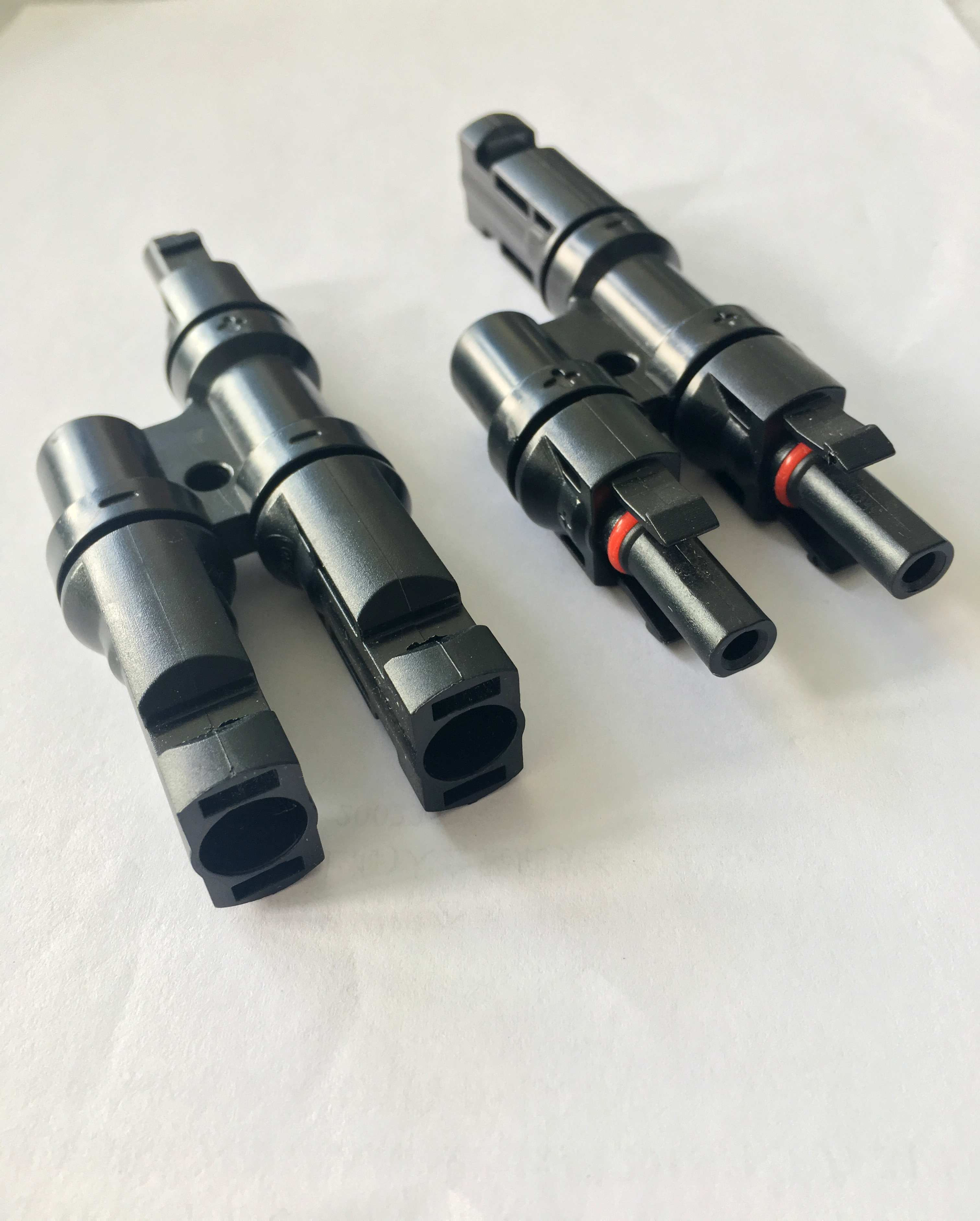

Whole image:



Basic datas


Maximum working voltage1000VDC
Protection classClassII
Protection DegreeIP65
Flame ClassUL94-V0
Temperature Range-40-+85
Connection Cable1*4mm2
Waterproofing structureO-ring Seal
Contact resistance≤5mmΩ
Insertion force≤50N
Withdrawal force≥50N
Contact Material PV
CertificationTUV


Advantages of MC4 Solar Cable Connector :

•Simple,quick,safe and effective filed assembly
•Develop independently,innovative design,have independent intellectual property rights,adaptive to MC4 connector directly
•High mechanical endurance
•High current and voltage carrying :30A,1000DC
•Low transition resistance
•Innovative sealed,waterproof,dust resistance design:IP65
•Excellent plastic material ,UL 94-V0,wide temperature range:-40°c to 85°c,weather and UV resistant for long-time outdoor application
•Approved by TUV

Terms:

 Payment Term: T/T 100% deposit advance based on sample or less than container  quantity order.
                              T/T 30% deposit advance, balance after copy of BL( based on CIF terms)
 Delivery time: 5-7 working days after deposit .
 Certificate: ISO9001/ISO14001/IEC/TUV
