waterproof solar panel connector mc4 ip67

waterproof solar panel connector mc4 ip67

waterproof solar panel connector mc4 ip67
waterproof solar panel connector mc4 ip67waterproof solar panel connector mc4 ip67waterproof solar panel connector mc4 ip67waterproof solar panel connector mc4 ip67waterproof solar panel connector mc4 ip67
CategoriesSolar connector
AlbumView larger image
Brandsufusolar,saikangguangdian,shanggui
ModelPV-SC01
CertificateTUV
Connector typeDC Power Connector
MaterialPVC
Protection typeIP67
Rated voltage1000vdc
Rated current30A
Waterproofing structureO-ring Seal
Temperature Range-40C~+85C
Frequency50Hz
FOB portTIANJIN
Terms of PaymentL/C, T/T
Download DOC
Update Time2018-12-12
Detail Information

waterproof solar panel connector mc4 ip67

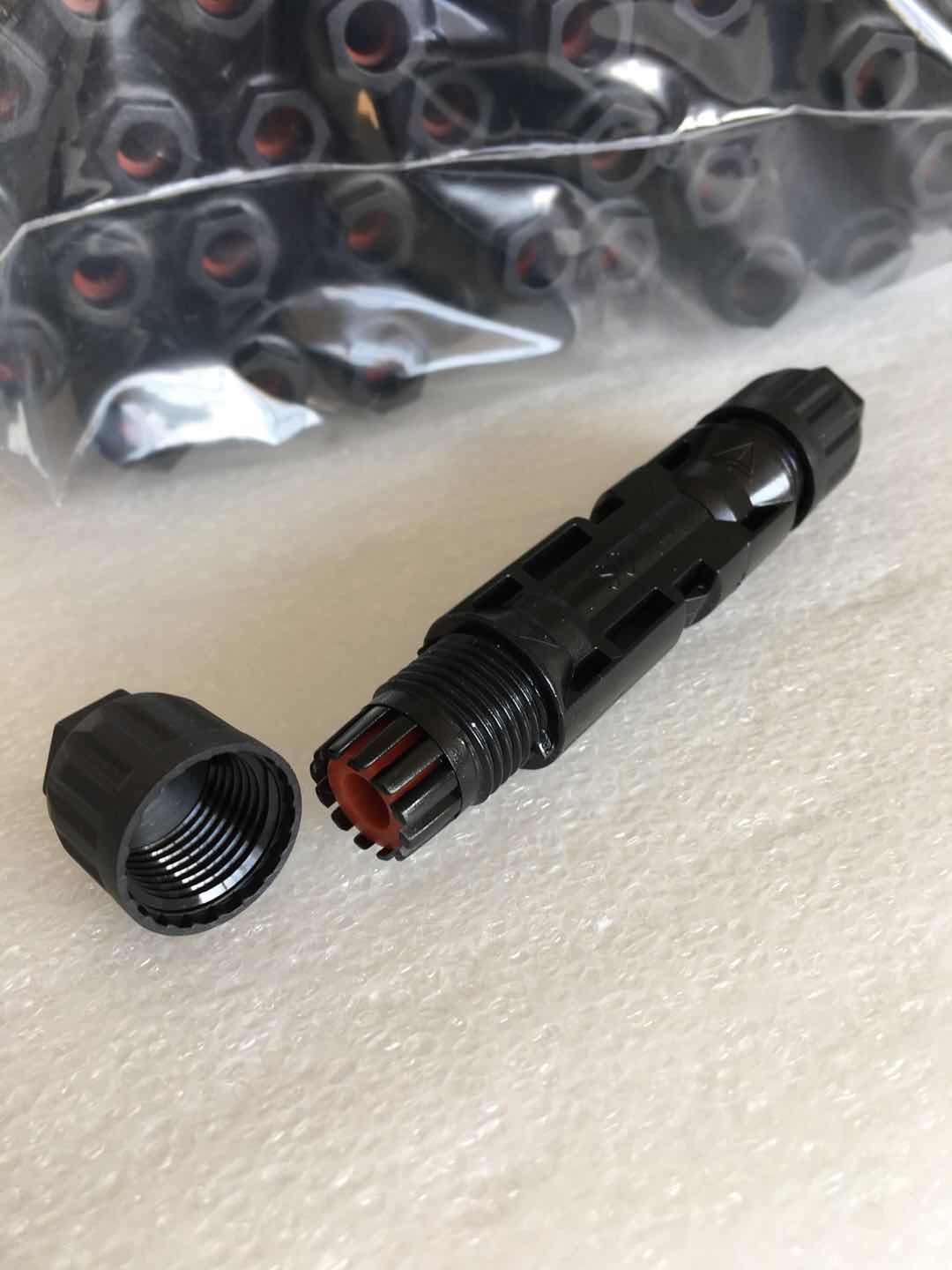

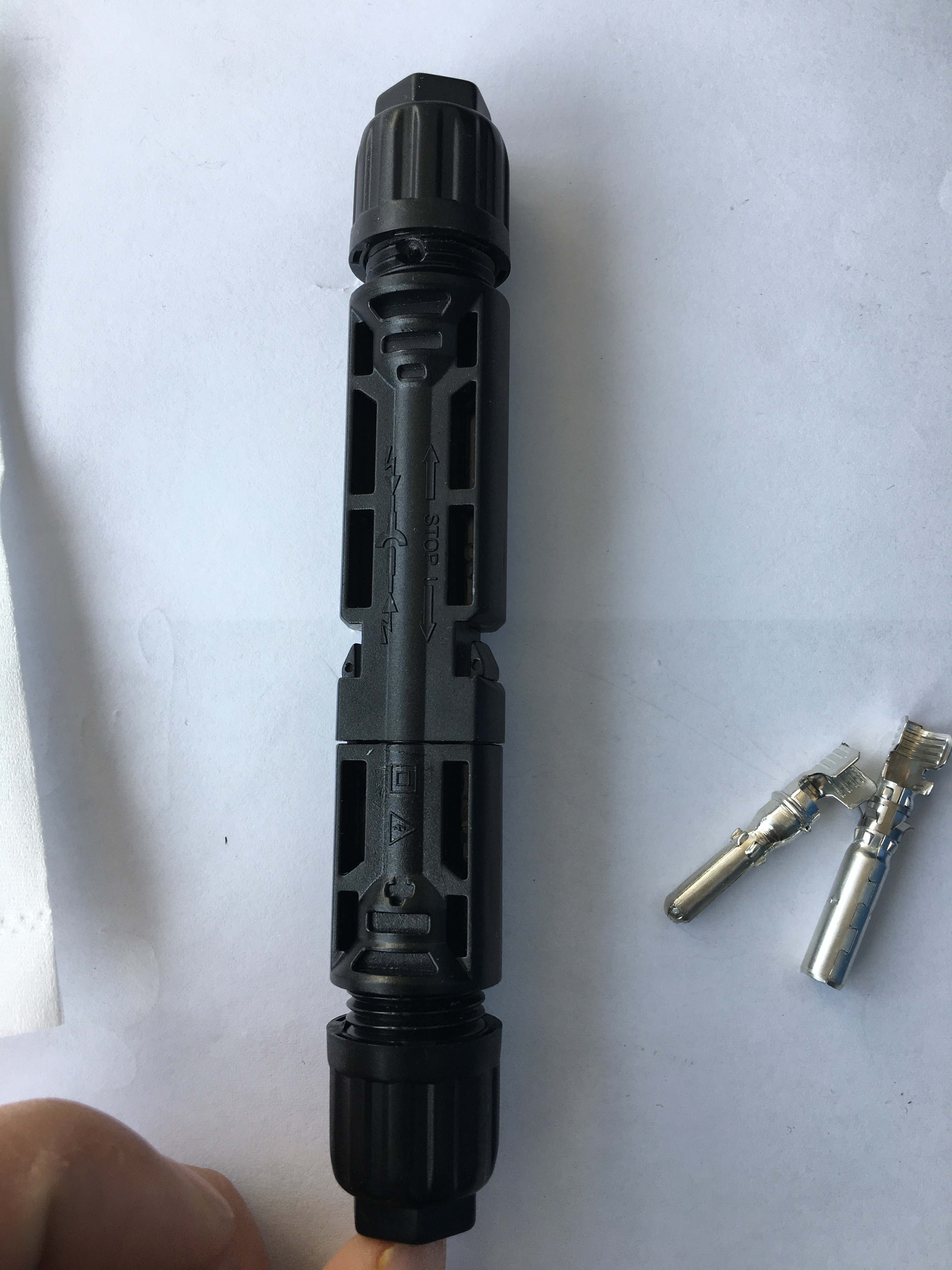

Whole image:




MC4 connectors used for solar panels and systems
This connector used for solar panels,with environment  material ,high quality and compective price

Our factory major in solar junction box ,with many types , please tell me your demand , i will help you to choose the right one.



Basic datas


High quality solar panel junction box ip65 with 4mmsolar pv cable
1000/1500 VDC

ClassII
Protection Degree
IP65
Flame Class
UL94-V0
Temperature Range
-40℃-+85℃
Connection Cable
1*4mm2
Waterproofing structure
O-ring Seal
Width Of Copper Ribbon
Up to 6mm
Connection Method
Soldering
Insulation Material
PPO(or ABS/PC)
Contact Material
Copper alloy,tin plated
Overall Dimension
15mm
Bonding mode
Siliica gel
raw material
              Babic
Connector
MC4



We are professional manufacturer of junction box ,use raw material from sabic , With TUV,.

our company specializes in the R&D,Production and sales of solar PV junction box,PV connectors,LED,Solar panel and other products.We have advanced test instruments,laboratory equipment and solid software and hardware facilities and a good corporate culture.


Advantages of MC4 Solar Cable Connector :

•Simple,quick,safe and effective filed assembly
•Develop independently,innovative design,have independent intellectual property rights,adaptive to MC4 connector directly
•High mechanical endurance
•High current and voltage carrying :30A,1000DC
•Low transition resistance
•Innovative sealed,waterproof,dust resistance design:IP65
•Excellent plastic material ,UL 94-V0,wide temperature range:-40°c to 85°c,weather and UV resistant for long-time outdoor application
•Approved by TUV

Terms:

 Payment Term: T/T 100% deposit advance based on sample or less than container  quantity order.
                              T/T 30% deposit advance, balance after copy of BL( based on CIF terms)
 Delivery time: 5-7 working days after deposit .
 Certificate: ISO9001/ISO14001/IEC/TUV
